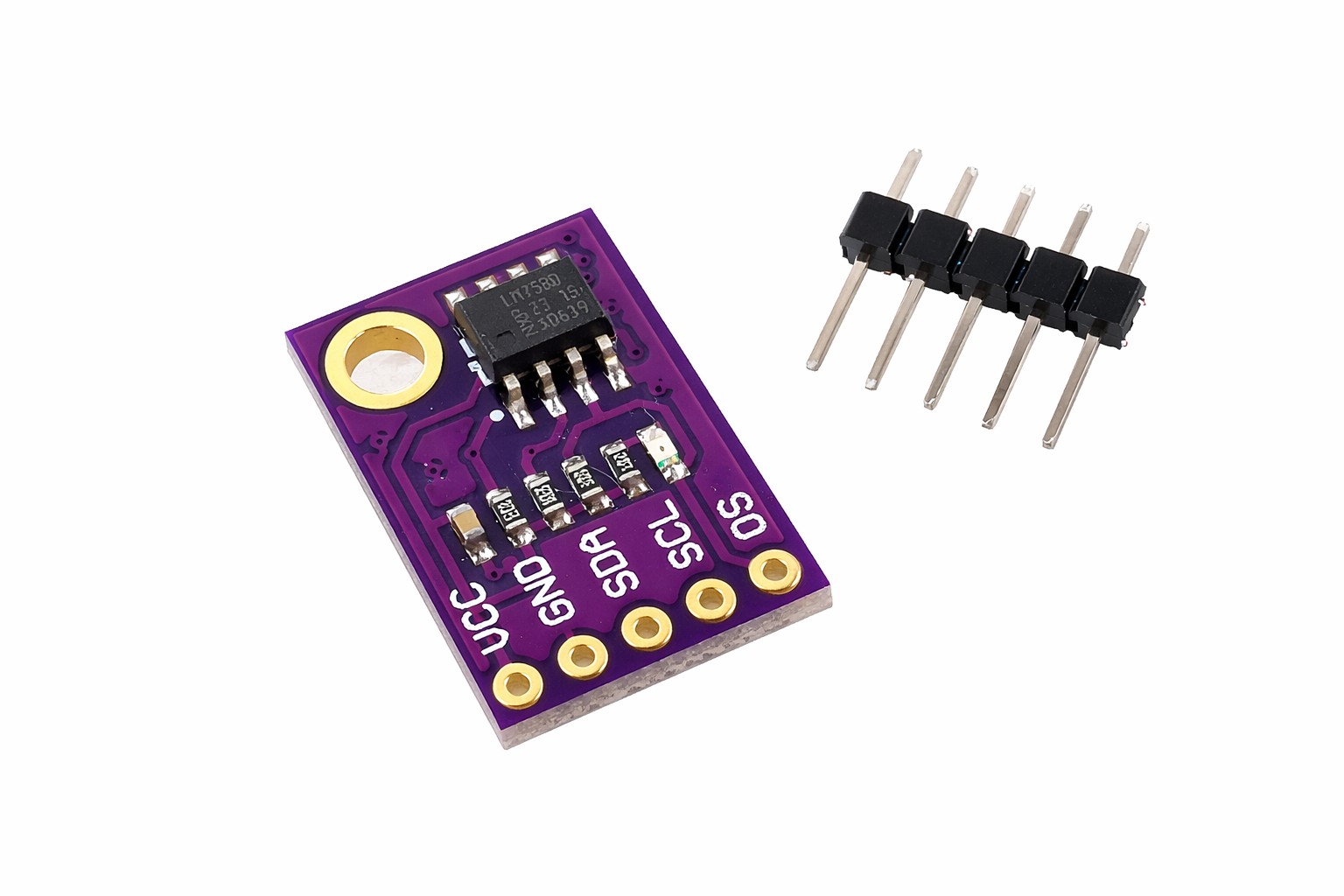

CJMCU-75 LM75 Temperature Sensor I2C MODULE CJMCU-75

Features:

• I2C bus interface, the device address 7 slave address 1001xxx, can expand external eight devices on the same bus;



• 11bit ADC provides a temperature resolution of 0.125’C;



• Programmable temperature threshold and hysteresis set points;



• In order to reduce power consumption, the current consumption in shutdown mode is the only 1.0uA;



• On power-up, the device can be used as a stand-alone temperature controller



Features/Specs:

• Working voltage: 2.8V-5.5V



• 11bit high-resolution ADC in chip



• Temperature resolution of 0.125°C



• Connect through I2C bus



• Temperatures range: -55°C to +125°C



• Supply current of 3.5 An in shutdown mode for power conservation



• Temperature accuracy of 2°C from -25°C to +100°C



• Temperature accuracy of 3°C from -55°C to +125°C
