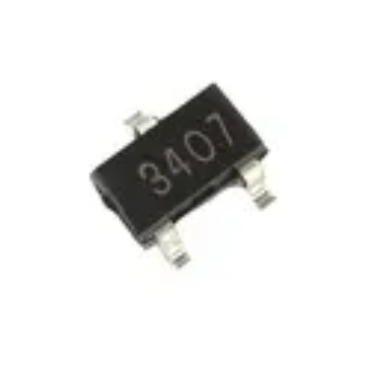

CJ3407 SMD MOSFET P-Channel SOT-23 3407 30V 4.1A JSCJ CJ3407

Product Overview

A surface-mount P-Channel power MOSFET designed using advanced high-cell-density trench technology. It provides excellent on-resistance ($R_{DS(on)}$) and low gate charge performance, making it highly efficient for load switching, pulse-width modulation (PWM), and portable power management applications.

Core Specifications

• Manufacturer: JSCJ (Jiangsu Changjing Electronics Technology)

• Package Type: SOT-23

• Function: SMD MOSFET (P-Channel)

• Voltage Rating: -30V

• Current Rating: -4.1A

• Power Dissipation: 350mW

• Static On-Resistance ($R_{DS(on)}$): * ~60 mΩ (maximum @ $V_{GS}$ = -10V)

  • ~87 mΩ (maximum @ $V_{GS}$ = -4.5V)

• Marking Code: 3407

• Part Number: CJ3407
