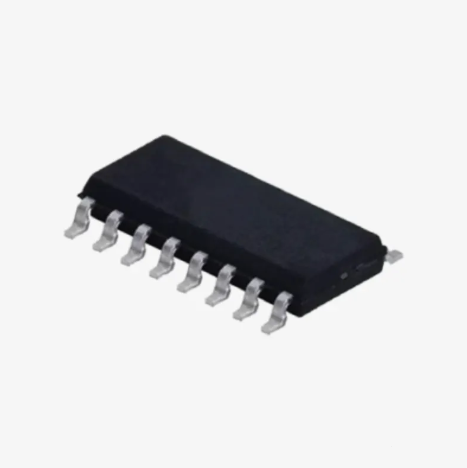

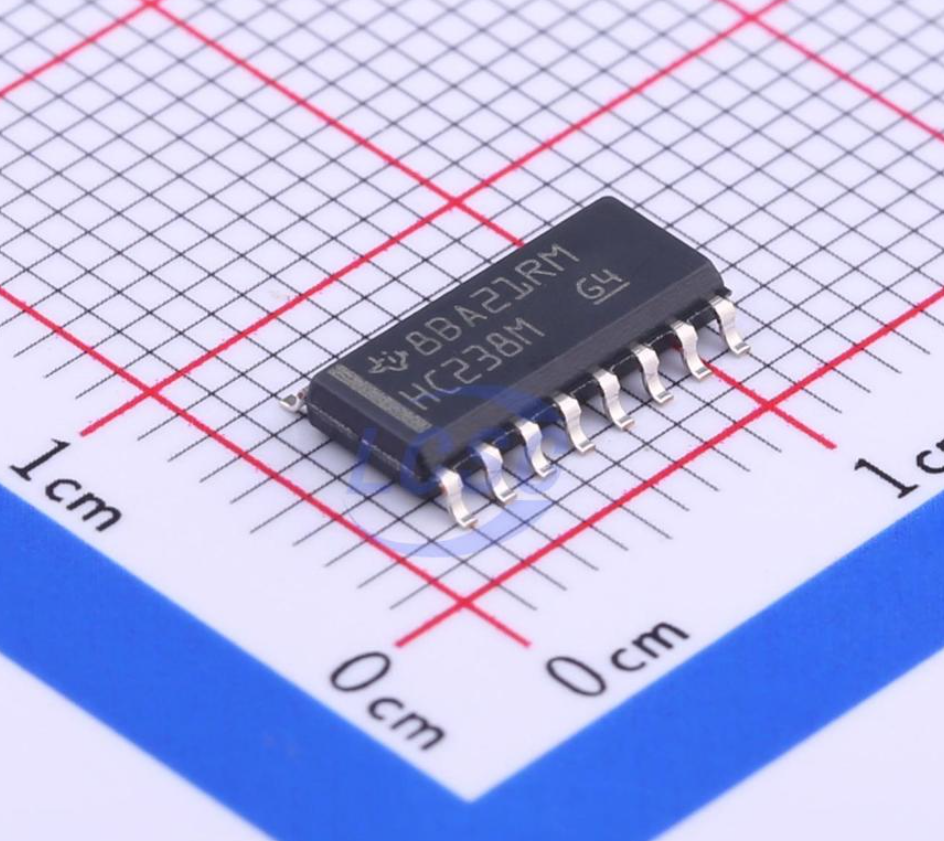

CD74HC238M96 SMD IC Demultiplexer SOIC16 74238 CD74HC238M96

Product Overview:

A high-speed CMOS logic integrated circuit functioning as a 3- to 8-line decoder/demultiplexer, designed for applications requiring high-speed data selection or decoding, such as I/O port or memory selection.

Core Specifications:

Manufacturer: Texas Instruments

Package Type: Available in 16-pin CERDIP (with other package variants common to the series)

Function: 3- to 8-Line Decoder/Demultiplexer (Inverting and Noninverting versions available)

Input Channels: 3-line binary address inputs (A0, A1, A2)

Control Interface: Three enable inputs to simplify cascading

Features:

• Selects one of eight data outputs

• Active Low (for 138 series) and Active High (for 238 series) output logic options

• Typical propagation delay of 13 ns ($V_{CC} = 5V$, $C_L = 15pF$, $T_A = 25^{\circ}C$)

• High-speed CMOS logic compatibility

Applications:

• I/O port expansion

• Memory chip selection

• Data routing and demultiplexing

• Logic level translation/buffering
