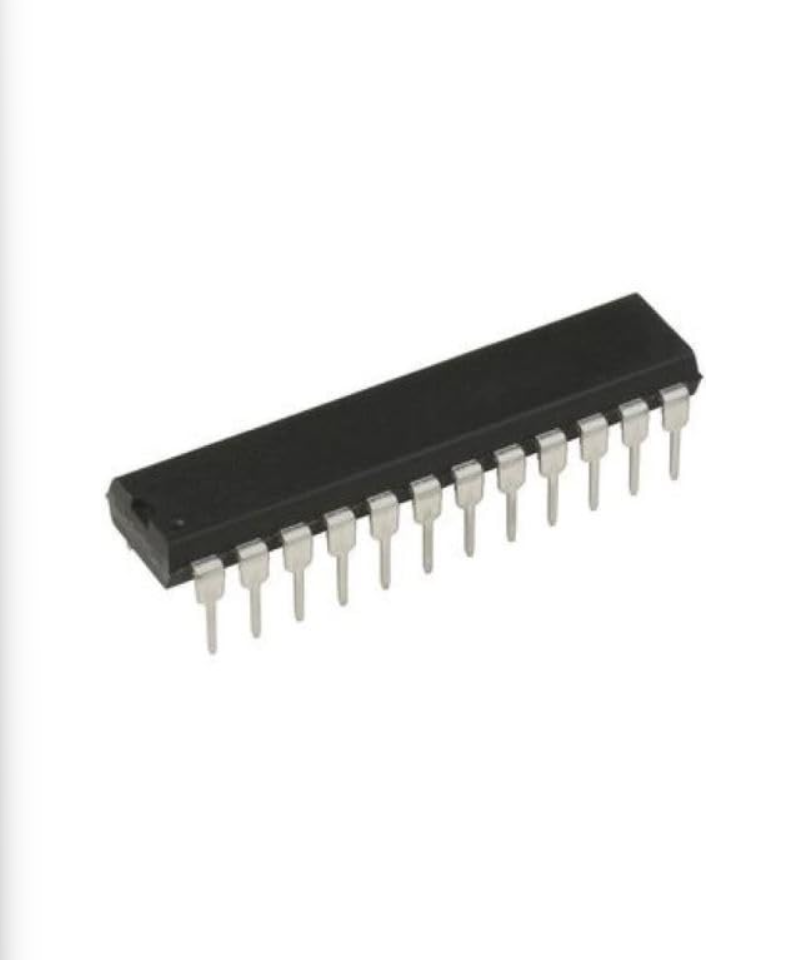

CD74HC154MG4 SMD IC Decoder Demultiplexer 74HC154 74154 SOP24 SOIC24Texas Instruments CD74HC154MG4

Product Overview:

The CD74HC154 is a high-speed CMOS 4-to-16-line decoder/demultiplexer integrated circuit, designed to facilitate decoding and demultiplexing Manufacturer: Texas Instruments

• Package Type: Available in various packages, including 24-pin CERDIP

• Function: 4- to 16-Line Decoder/Demultiplexer

• applications in digital systems. It features two enable inputs that allow for cascading functions or use as a data input during demultiplexing operations.

  Core Specifications:

  Operating Voltage: 2V to 6V

• Features:

  • Two enable inputs for demultiplexing and cascading

  • High noise immunity

  • Balanced propagation delay and transition times

  • Significant power reduction compared to LSTTL logic ICs

Applications:

• Memory decoding

• Data routing

• Demultiplexing functions

• General-purpose logic switching and decoding in digital circuits
