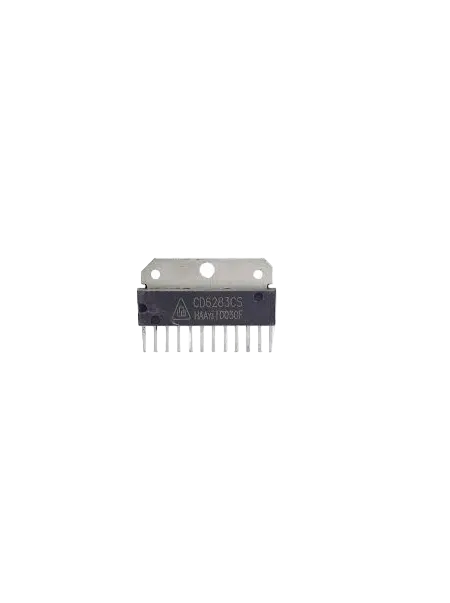

CD6283CS IC audio amplifier IC SEMICO 6283

Product Overview:
A dual-channel monolithic audio power amplifier integrated circuit designed for low-power portable stereo devices.

Core Specifications:
* Package Type: SIP (Single Inline Package), 12-Pin
* Operating Voltage Range: 6 V to 15 V
* Power Output (at 9V Vcc): 2.5 W per channel
* Power Output (at 12V Vcc): 4.6 W per channel
* Input Resistance: 30 kΩ
* Standard Voltage Gain: 45 dB (Adjustable via external resistors)
* Recommended Load Impedance: 8 Ω
* Integrated Protection: Thermal shut-down
