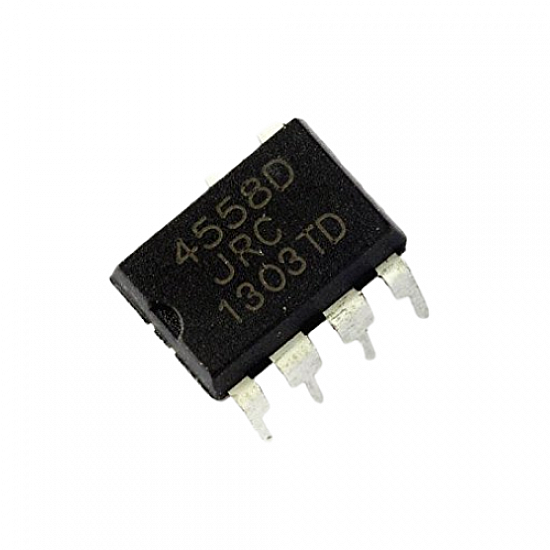

CD4558 IC Operational Amplifier DIP-8 CD4558

Product Overview

The MC4558 is a monolithic dual operational amplifier designed for high-performance analog applications. It integrates all the standard features of the MC1458 while providing three times its unity gain bandwidth, delivering a gain bandwidth of 5.5 MHz at 100 kHz. The IC is internally compensated, includes full short-circuit protection, and maintains exceptional gain and phase matching between both on-chip amplifiers. It is fully pin-to-pin compatible with industry standards like the MC1458 and LM358.

Core Specifications

• Manufacturer: STMicroelectronics

• Function: Wide Bandwidth Dual Bipolar Operational Amplifier
