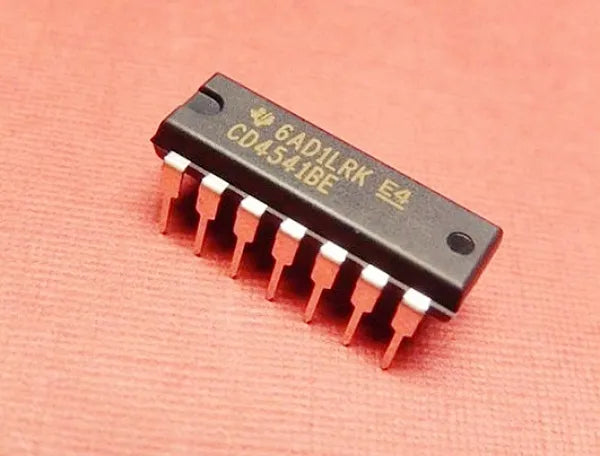

CD4541BE IC TIMER DIP-14 CD4541BE

Product Overview: The CD4541B programmable timer consists of a 16-stage binary counter, an oscillator controlled by external R-C components (2 resistors and a capacitor), an automatic power-on reset circuit, and output control logic. The counter increments on positive-edge clock transitions and can be configured to operate as a 2^N frequency divider or a single-transition timer. Typical applications cover precise digital timing circuits, frequency division, and single-transition time delay generation.

Core Specifications:

• Manufacturer: Texas Instruments Incorporated (acquired from Harris Semiconductor)

• Package Type: 14-lead PDIP (E), 14-lead CERDIP (F3A), 14-lead SOIC (M/MT/M96), 14-lead SOP (NSR), and 14-lead TSSOP (PW/PWR) packages

• Function: CMOS programmable timer capable of acting as a frequency divider or a single-transition timer, featuring a built-in low-power RC oscillator (DC to 100 kHz) and selectable 2^N counter stages (2^8, 2^10, 2^13, or 2^16) via time-select inputs.
