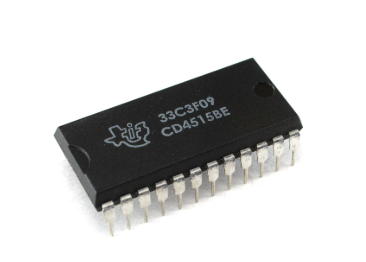

CD4515 IC 4-Bit Latched Address Decoder DIP-24 CD4515

Product Overview

The CD4515BC is a 4-to-16 line decoder with latched inputs implemented in CMOS technology. It is designed for decoding applications where low power dissipation and high noise immunity are required. The device uses R-S type flip-flops as input latches to hold the last input data before decoding. The CD4515BC specifically provides an active-low logical "0" at the selected output.

Core Specifications

Manufacturer: Fairchild Semiconductor

Function: 4-bit latched 4-to-16 line decoder (Active-Low Output)
