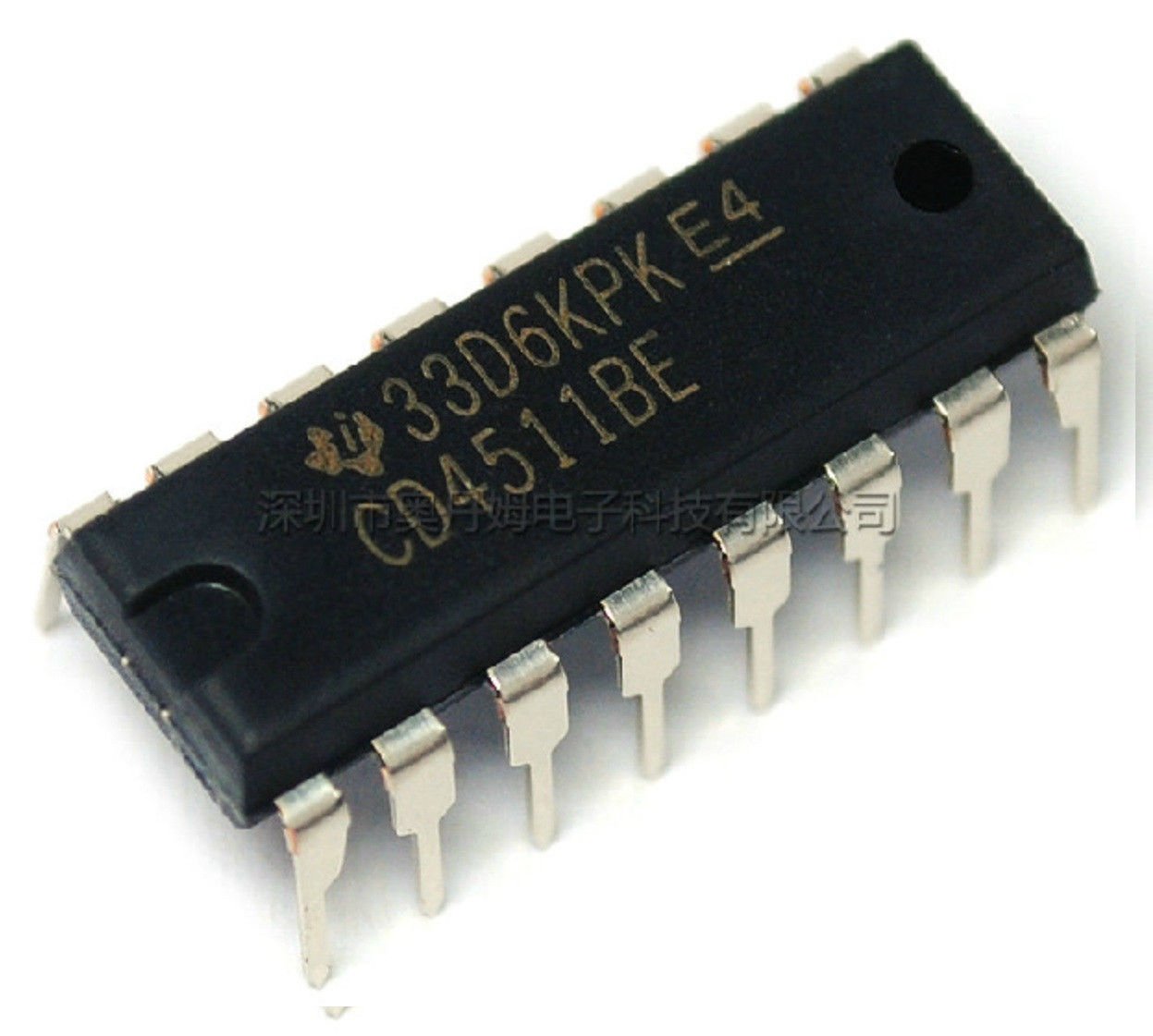

CD4511 IC BCD TO 7-SEGMENT DECODER DRIVER HLF DIP-16 CD4511

Product Overview

The CD4511B is a CMOS BCD-to-7-segment latch decoder driver manufactured by Texas Instruments. This device features a combination of CMOS logic and NPN bipolar output transistors on a single monolithic structure. It is designed to drive LED displays directly, providing high-output source current (up to 25 mA) while maintaining the low quiescent power dissipation and high noise immunity characteristic of CMOS technology.

Core Specifications

• Manufacturer: Texas Instruments

• Function: CMOS BCD-to-7-Segment Latch Decoder Driver
