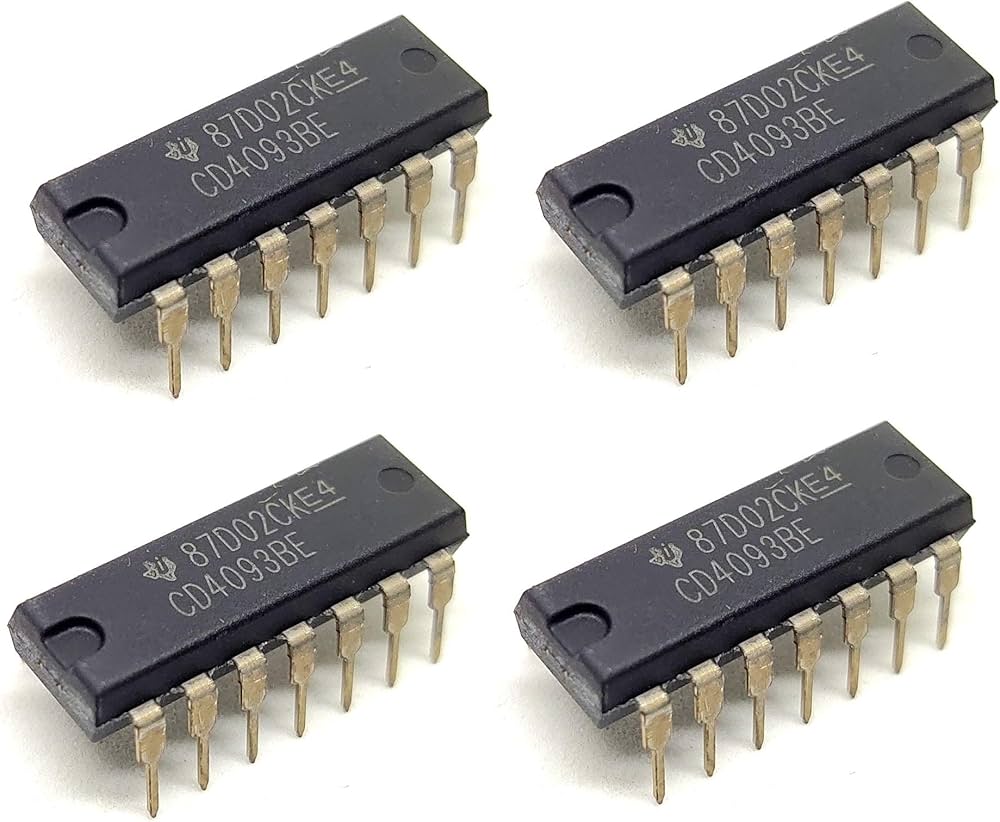

CD4093BE IC Quad 2-Input Schmitt Trigger NAND Gate CD4093BE

Product Overview: A quad 2-input NAND Schmitt trigger integrated circuit designed for CMOS logic applications, where each gate provides hysteresis to improve noise immunity and shape input signals.

Core Specifications:

Manufacturer: Texas Instruments

Package Type: PDIP, SOIC, TSSOP, and ceramic packages (14-lead)

Function: Quad 2-input NAND Schmitt triggers

Input Channels: 4 independent NAND gates with Schmitt trigger action on both inputs

Control Interface: CMOS logic levels
