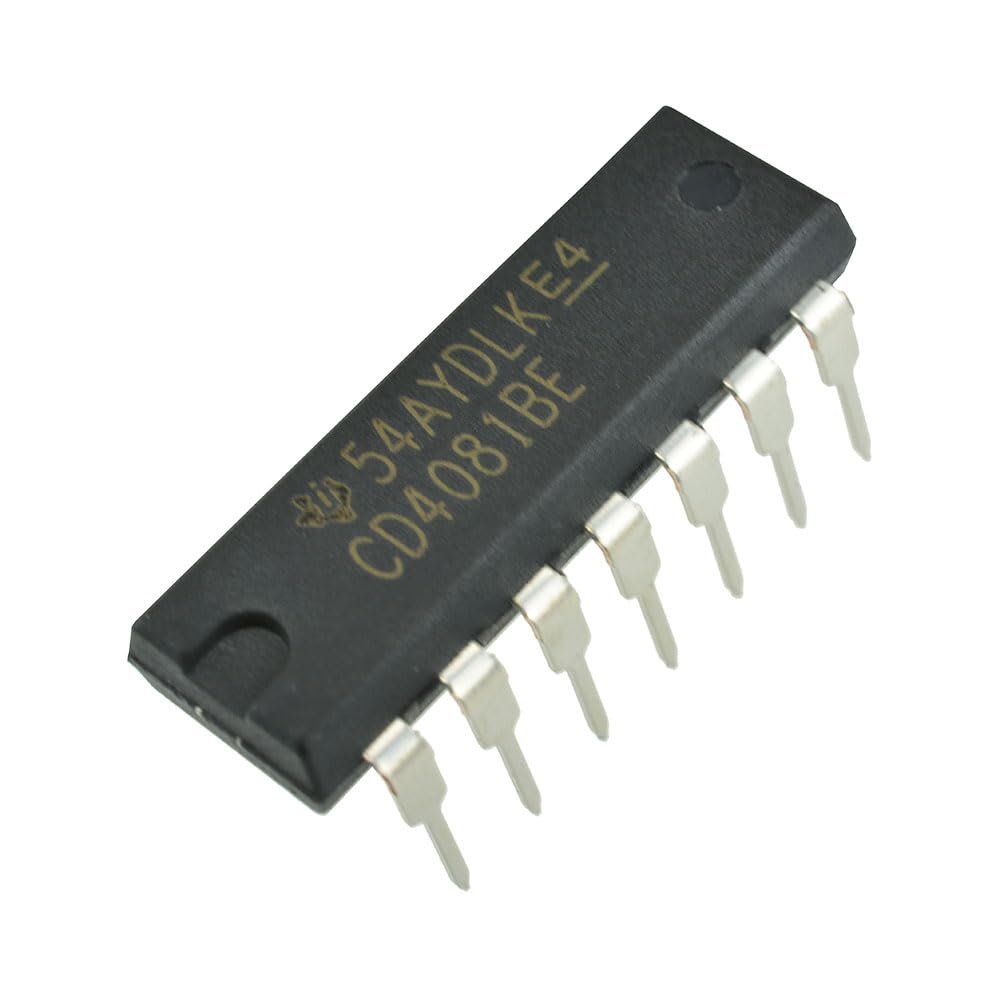

CD4081 IC DIP14 AND GATE UTC CD4081

Product Overview

The Texas Instruments CD4081 is a CMOS Quad 2-Input AND Gate designed to provide the system designer with a direct implementation of the AND function. This high-voltage type device features a 20-Volt rating along with standardized, symmetrical output characteristics. It operates such that each of its four independent gates outputs a HIGH logic level only when both of its respective inputs are driven to a HIGH state, supplementing the existing family of CMOS logic gates.
