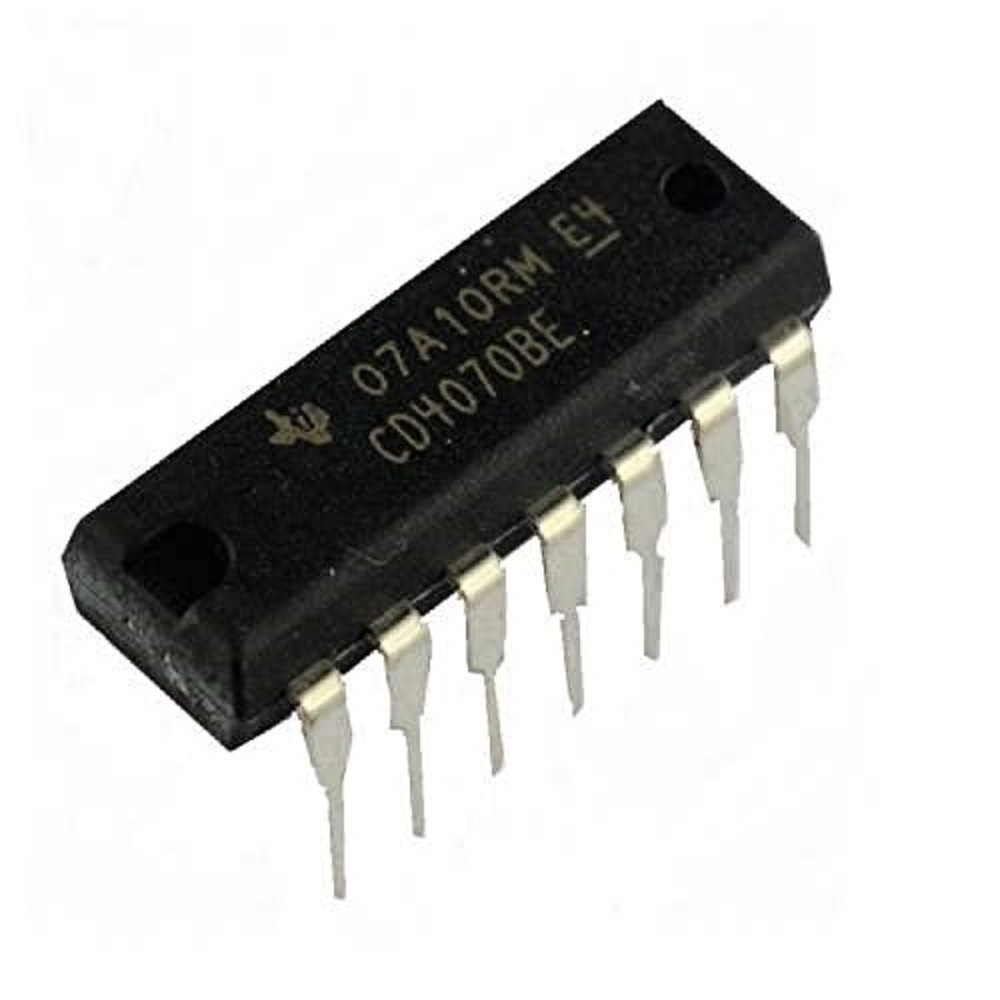

CD4070BE IC – Quad 2-Input XOR Gate CD4070BE

Product Overview The Texas Instruments CD4070BE is a CMOS Quad Exclusive-OR Gate designed to provide the system designer with a direct implementation of the Exclusive-OR function. This high-voltage type device features a 20-Volt rating along with standardized, symmetrical output characteristics and operates across 5-V, 10-V, and 15-V parametric ratings. It contains four independent gates that provide medium-speed operation, serving as a standard component for digital logic circuit designs.
