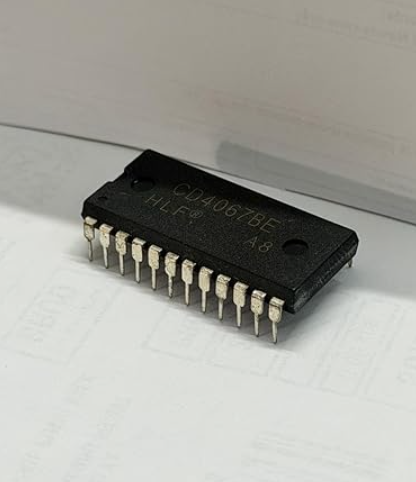

CD4067 ic 16-Channel Analog Multiplexer/Demultiplexer

A digitally controlled analog switch utilizing CMOS technology to achieve high-speed operation with very low quiescent power dissipation. It functions as a bidirectional switch, allowing any analog or digital input to be utilized as an output and vice-versa, making it highly effective for multi-channel signal routing.

Core Specifications

• Manufacturer / Brand: Texas Instruments (and other standard semiconductor manufacturers)

• Package Type: 24-lead PDIP (E suffix), SOIC (M/M96 suffixes), TSSOP (P/PWR suffixes), or CDIP (F3A suffix)

• Function: 16-Channel Analog Multiplexer / Demultiplexer

• Communication Channels: 16 Independent Channels mapped to 1 Common Input/Output

• Control Interface: 4-Bit Binary Address Control Inputs (A, B, C, D) and 1 Inhibit (Enable) Input
