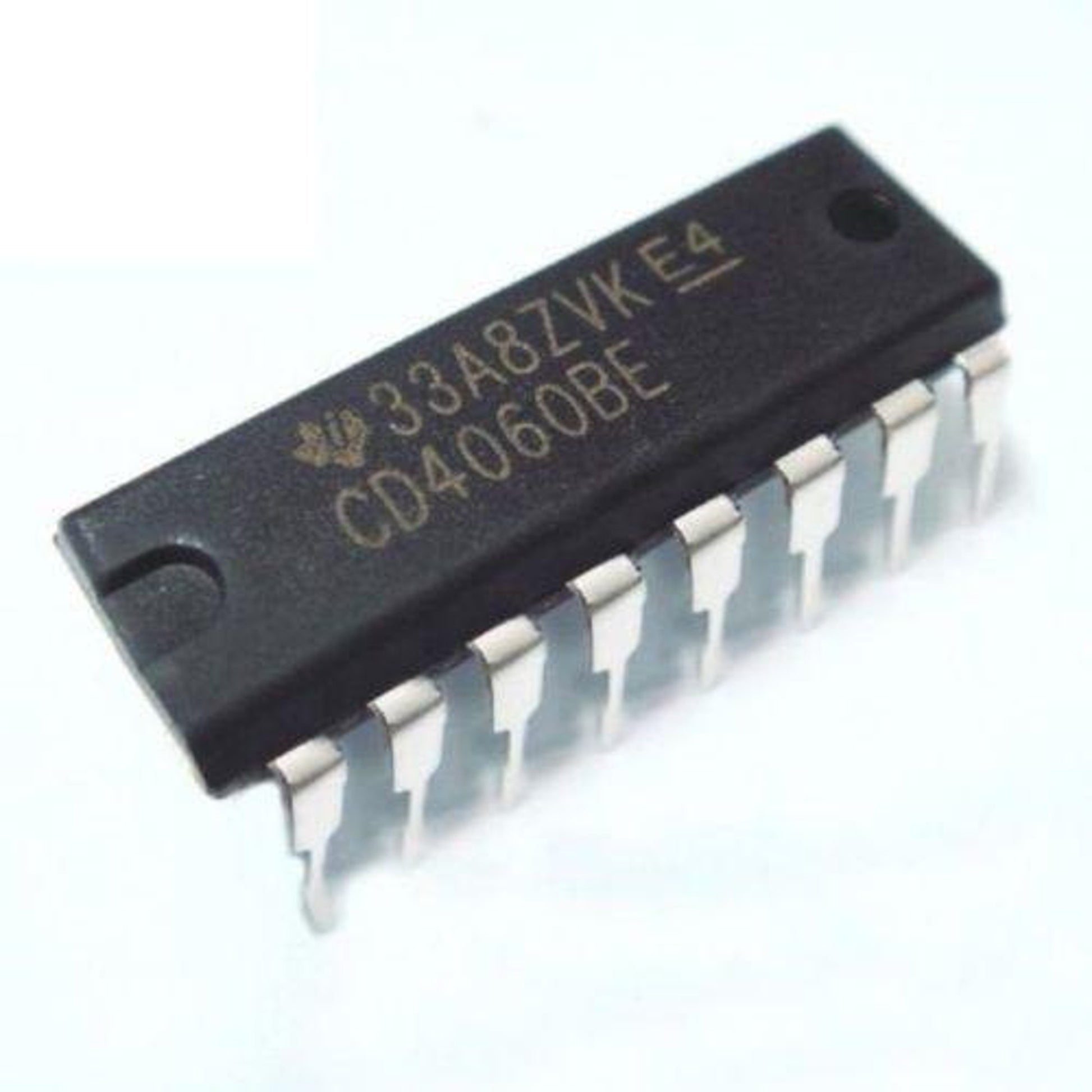

CD4060BE IC DIP16 TI/NXP COUNTER CD 4060 CD4060BE

Product Overview

A highly versatile CMOS 14-stage ripple-carry binary counter and divider integrated with an on-chip oscillator stage. Designed for precision timing, frequency division, and time-delay applications, this device advances its count on the falling edge of the clock pulse and features static operation to ensure low power consumption. It incorporates an asynchronous master reset function that clears all counter stages simultaneously when pulled high. Engineered to operate reliably across an ultra-wide temperature range (-55°C to +125°C), it supports a maximum count rate of 12 MHz with a rapid 100ns propagation delay, making it an excellent choice for industrial control clocks, pulse generators, and frequency synthesizers.

Core Specifications

• Manufacturer: Texas Instruments (TI)

• Package Type: DIP-16 (16-pin Dual Inline Package)

• Function: CMOS 14-Stage Ripple Carry Binary Counter/Divider and Oscillator (MPN: CD4060BE / LCSC Part #C5198)

• Input Voltage: Wide operational supply voltage range from 3V to 18V

• Control Interface: Falling-edge triggered clock input for up-counter advancement, supported by an asynchronous Master Reset function and built-in oscillator configurations.
