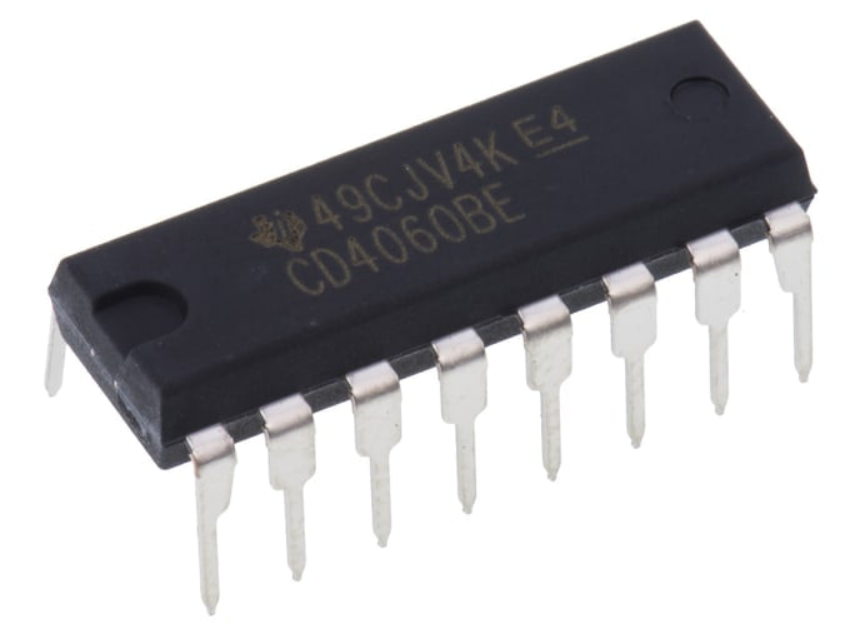

CD4060 IC 14 stage Ripple Carry Binary Counter IC CD4060

Product Overview

The Texas Instruments (originally Harris Semiconductor) CD4060B is a CMOS 14-stage ripple-carry binary counter/divider and oscillator. It features an integrated oscillator section that can be configured with either external RC or crystal components, making it highly versatile for time-keeping, frequency division, and delay circuits. The counter stages consist of master-slave flip-flops that advance by one binary count sequentially on the negative-going transition of each clock pulse.
