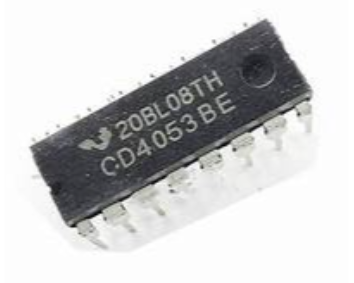

CD4053 IC Triple 2-Channel Analog Multiplexer/Demultiplexer DIP-16 CD4053

Product Overview

The CD4053B is a CMOS digitally-controlled analog switch that functions as a triple 2-channel analog multiplexer or demultiplexer. It is designed for low ON resistance and very low OFF leakage current, making it suitable for high-precision signal switching. The device supports logic-level conversion, allowing digital addressing signals to control analog signals up to 20V peak-to-peak. It is widely used in applications such as signal gating, data acquisition, and programmable logic circuits.

Core Specifications

Manufacturer: Texas Instruments

Function: Triple 2-channel analog multiplexer/demultiplexer
