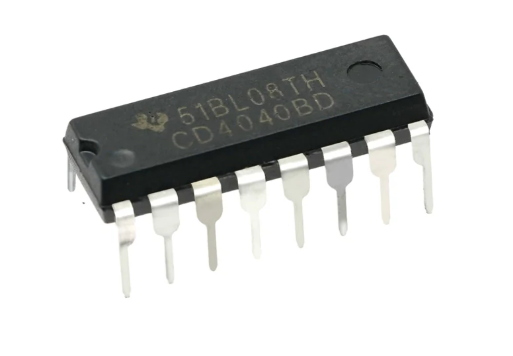

CD4040 IC ripple-carry binary counter DIP-16 CD4040

Product Overview

The CD4040B is a high-voltage (20-volt rating) CMOS ripple-carry binary counter/divider. It is a 12-stage device where all counter stages are master-slave flip-flops. The counter advances one step on the negative transition of each input pulse. A high level applied to the RESET line clears the counter to its all-zeros state. The input-pulse line features Schmitt trigger action, allowing for the use of input signals with slow rise and fall times.

Core Specifications

• Manufacturer: Texas Instruments (originally Harris Semiconductor)

• Function: 12-Stage Ripple-Carry Binary Counter/Divider

• Voltage Rating: High-voltage types (up to 20V)

• Input Features: Schmitt trigger action on the clock input

• Reset: High-level reset resets all stages to zero

• Buffering: All inputs and outputs are buffered

• Package Availability: 16-lead packages, including ceramic DIP, plastic DIP, small-outline (SOIC), and TSSOP
