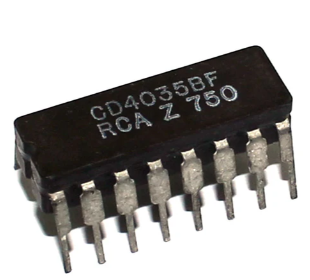

CD4035 IC Parallel-In/Serial-Out Shift Register DIP-16 CD4035

Product Overview

The CD4035B is a 4-stage clocked CMOS shift register featuring synchronous parallel inputs for each stage and serial inputs for the first stage via JK logic. It allows for flexible data handling, including parallel entry, serial shifting, and asynchronous true/complement output selection. Designed for various applications such as counters, registers, sequence generation, and code conversion, it offers robust CMOS performance.

Core Specifications

Manufacturer: Texas Instruments (acquired from Harris Semiconductor)

Function: CMOS 4-Stage Parallel In/Parallel Out Shift Register
