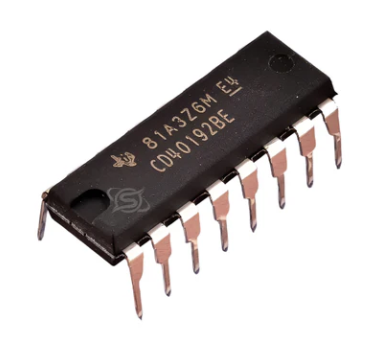

CD40192 IC Synchronous 4-Bit Up/Down Decade Counter DIP-16 CD40192

Product Overview

The CD40193B is a CMOS presettable binary up/down counter that consists of four synchronously clocked, gated D-type flip-flops. It is designed for multi-stage counting schemes and includes features such as individual jam inputs for parallel data loading, a master asynchronous reset, and dedicated clock-up and clock-down inputs. This device is capable of operating at high voltages (up to 20 V) and is commonly used in industrial control, frequency synthesizers, and digital instrumentation applications.

Core Specifications

• Manufacturer: Texas Instruments

• Function: CMOS Presettable Binary Up/Down Counter

• Counter Type: 4-bit Binary

• Clocking: Dual-clock (separate UP and DOWN clock inputs)

• Control Features: Asynchronous master reset, preset enable, and 4-bit parallel data jam inputs
