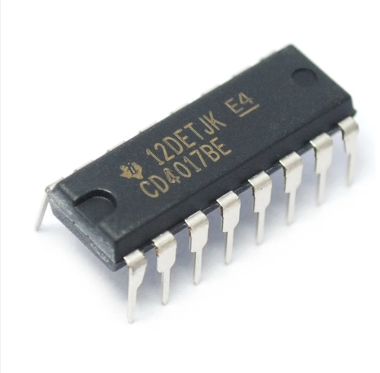

CD4017 IC DIP16 TI Counter CD4017BE

Product Overview

A high-reliability CMOS decade counter integrated circuit designed for low-power sequential counting and timing applications. The device features 10 fully decoded outputs that turn high one by one in response to a clock pulse. It incorporates built-in clock inhibit and master reset features, making it highly optimized for industrial automation, electronic displays, musical sequencers, and multi-step switching systems. Its robust design ensures excellent noise immunity and reliable performance under varying clock frequencies across a wide operational environment.

Core Specifications

• Manufacturer: Texas Instruments (and other standard CMOS manufacturers)

• Package Type: PDIP-16 / SOIC-16 (Standard 16-pin configurations)

• Function: CMOS Decade Counter Divider with 10 Decoded Outputs (CD4017B)

• Input Voltage: Wide operating supply voltage range from 3V to 18V

• Control Interface: Hardware-controlled logic interface consisting of a clock input, a clock inhibit input, and a master reset line to advance or clear the 10 individual decoded outputs.
