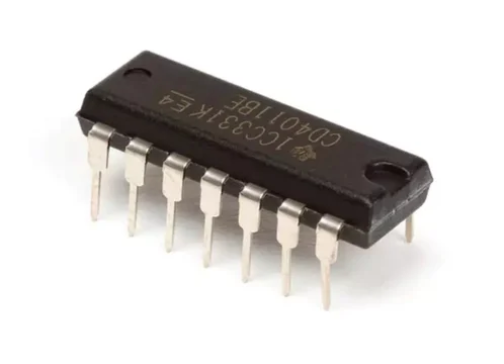

CD4011BE IC Quad 2-Input NAND Gate CD4011BE

Product Overview: A series of CMOS NAND gates designed for general-purpose digital logic, featuring buffered inputs and outputs to improve noise immunity and drive capability. These are high-voltage types capable of operating up to 20V.

Core Specifications:

• Manufacturer: Texas Instruments (acquired from Harris Semiconductor)

• Package Type: 14-lead Hermetic Dual-In-Line (F3A), 14-lead Plastic Dual-In-Line (E), 14-lead Small-Outline (M, MT, M96, NSR), and 14-lead Thin Shrink Small-Outline (PW, PWR) packages.

• Function: NAND Logic Gates
