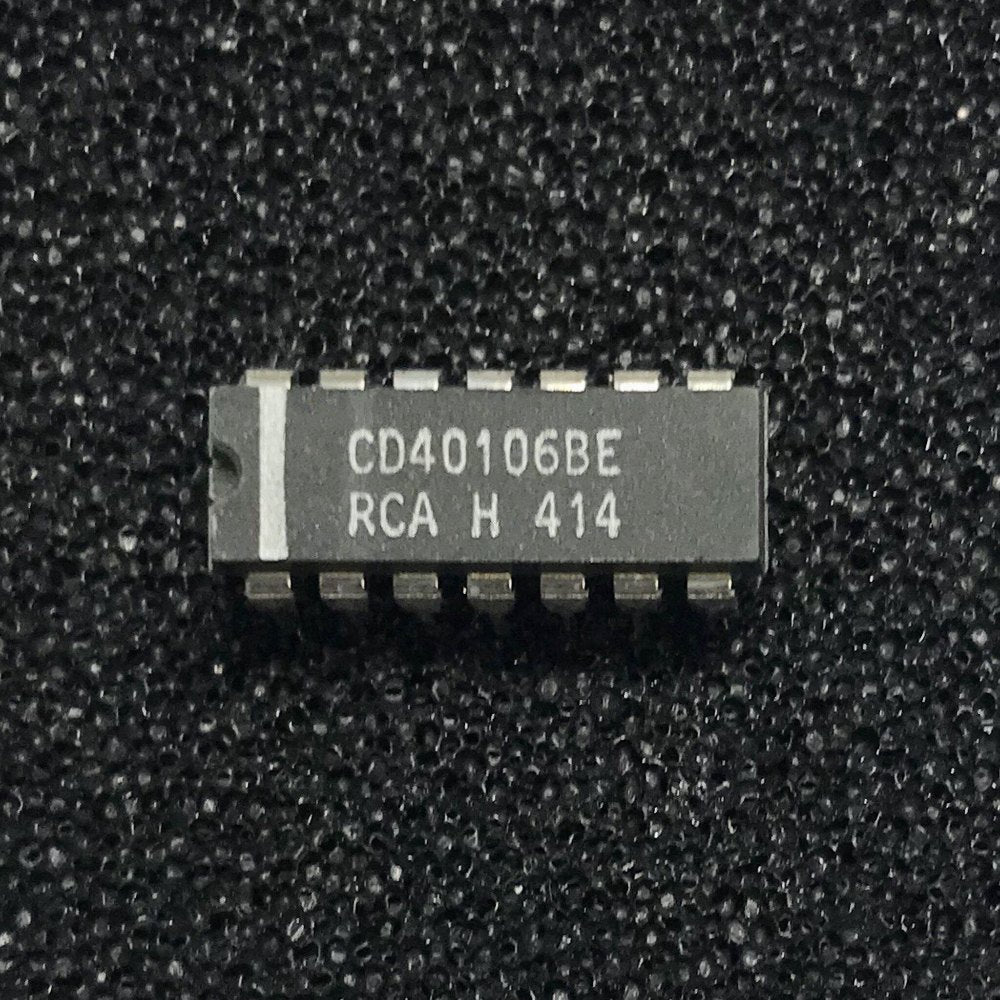

CD40106 IC Hex Schmitt Trigger Inverters TI DIP-14 CD40106

Product Overview

The CD40106BM is a monolithic complementary MOS (CMOS) hex Schmitt trigger integrated circuit featuring six independent trigger circuits on a single chip. It operates over a wide supply voltage range of 3V to 15V while offering high noise immunity and low power consumption. The device provides a guaranteed hysteresis voltage with positive and negative-going thresholds that exhibit low temperature variation. Additionally, all input channels are fully protected against static discharge damage via integrated diode clamps to

Core Specifications

• Manufacturer: National Semiconductor

• Function: Hex Schmitt Trigger (6-Channel CMOS IC)
