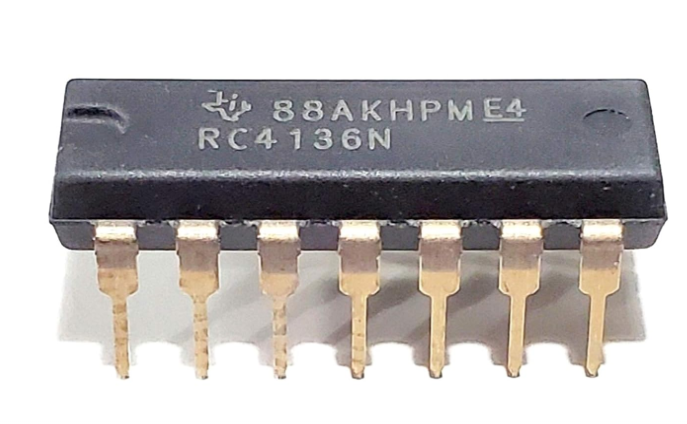

CD4136 IC Quad General-Purpose Operational Amplifier DIP-14 CD4136

Product Overview

The CD4136 is an equivalent part for the RC4136, RM4136, and RV4136 series. These are quad, general-purpose operational amplifiers. Each of the four amplifiers within these devices is electrically similar to the industry-standard µA741, though they do not provide offset null capability. They are designed for stability without the need for external components, as internal frequency compensation is provided. Their high common-mode input voltage range and resistance to latch-up make them well-suited for voltage-follower applications.

Core Specifications

• Function: Quad General-Purpose Operational Amplifier

• Unity-Gain Bandwidth: 3 MHz (typical)

• Noise: 8 nV/√Hz (typical at 1 kHz)

• Protection: Continuous short-circuit protection
