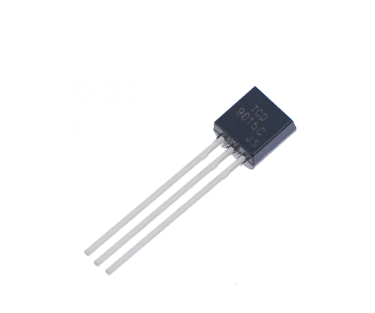

C9015 Traansistor PNP TRANSISTOR 9015 CDIL C9015

Product Overview

The C9015 is a high-gain, low-noise PNP silicon bipolar junction transistor (BJT) designed primarily for low-level, low-noise amplification stages. Due to its excellent noise characteristics, it is widely utilized in the input stages of audio pre-amplifiers, microphone amplifiers, and sensitive signal processing equipment. It is the PNP complement to the widely used C9014 (NPN) transistor.

Core Specifications

• Manufacturer: CDIL (Continental Device India Limited)

• Package Type: TO-92 (Through-Hole)

• Component Type: PNP Silicon Transistor (Complement to NPN C9014)

• Collector-Emitter Voltage ($V_{CEO}$): -45V

• Collector-Base Voltage ($V_{CBO}$): -50V

• Emitter-Base Voltage ($V_{EBO}$): -5V

• Continuous Collector Current ($I_C$): -100mA

• Power Dissipation ($P_{tot}$): 450mW (at $T_A = 25^\circ C$)

• DC Current Gain ($h_{FE}$): 200 to 1000 (Classified by gain range: A, B, C, D)

• Transition Frequency ($f_T$): 150 MHz (Typical)

• Marking Code: C9015

• Part Number: C9015
