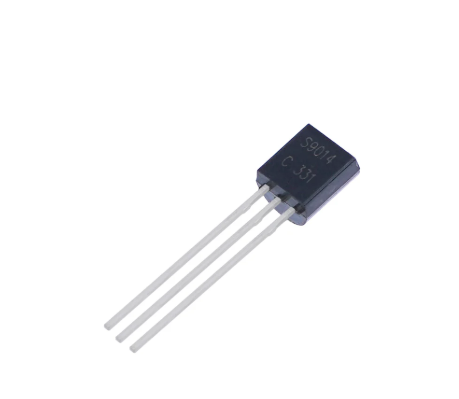

C9014 Transistor NPN TRANSISTOR 9014 CDIL C9014

Product Overview

The C9014 is a highly versatile, low-noise NPN silicon bipolar junction transistor (BJT) designed specifically for low-level, low-noise amplification. Because of its high current gain ($h_{FE}$) and low noise figure, it is a staple in the input stages of audio pre-amplifiers, microphone amplifiers, and sensitive signal processing circuits. It is the NPN complement to the C9015 (PNP) transistor, making them a common pair for designing balanced audio circuits.

Core Specifications

• Manufacturer: CDIL (Continental Device India Limited)

• Package Type: TO-92 (Through-Hole)

• Component Type: NPN Silicon Transistor (Complement to PNP C9015)

• Collector-Emitter Voltage ($V_{CEO}$): 45V

• Collector-Base Voltage ($V_{CBO}$): 50V

• Emitter-Base Voltage ($V_{EBO}$): 5V

• Continuous Collector Current ($I_C$): 100mA

• Power Dissipation ($P_{tot}$): 450mW (at $T_A = 25^\circ C$)

• DC Current Gain ($h_{FE}$): 60 to 1000 (Classified by gain range: A, B, C, D)

• Transition Frequency ($f_T$): 150 MHz (Typical)

• Marking Code: C9014

• Part Number: C9014
