BTS7960 Motor Driver module 43A H-bridge High-power stepper/DC BTS7960

Product Overview

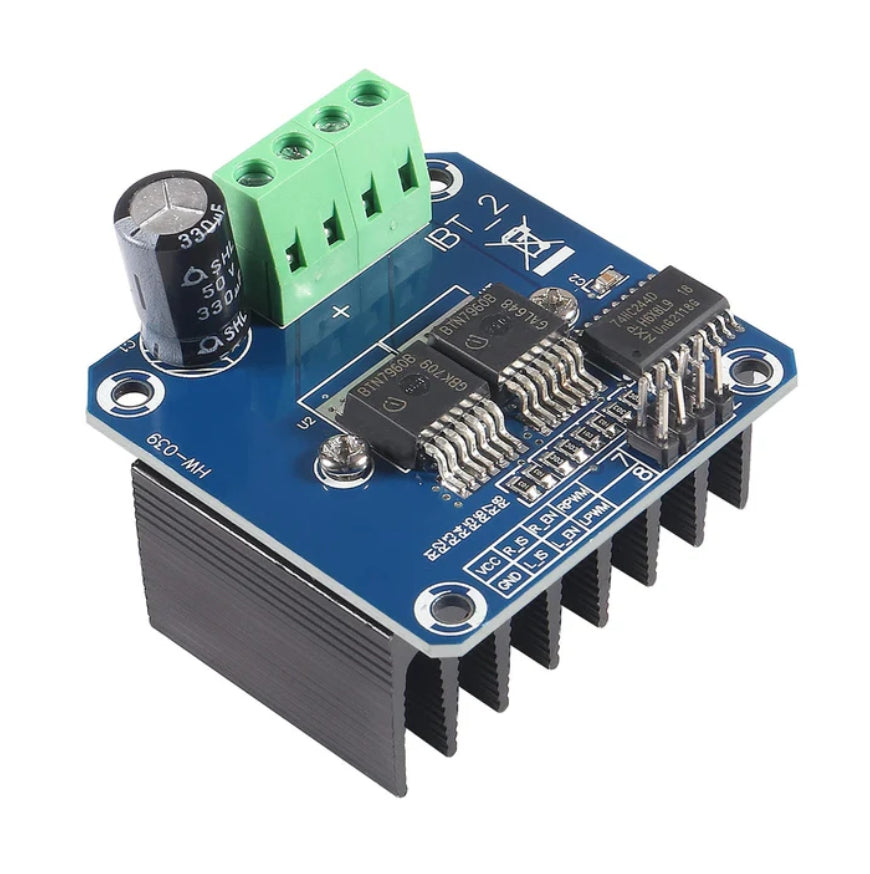

The module shown in the provided document is a BTS7960 High Current 43A H-Bridge Motor Driver Module (commonly known in the open-market as the IBT-2 board). It is an integrated, high-power motor driver designed to control the speed and direction of a single brushed DC motor using Pulse Width Modulation (PWM). By featuring logic-level inputs, it interfaces cleanly with microcontrollers like Arduino to supply high current while providing integrated safety features like over-temperature, overcurrent, and short-circuit protection.

Core Specifications

• SKU: DRV-1012

• Driver Architecture: Dual BTS7960 H-Bridge Configuration

• Input (Motor) Voltage Range: 6V DC to 27V DC

• Peak Output Current: 43 Amps

• Control Input Level: 3.3V to 5V DC logic

• PWM Capability: Up to 25 kHz

• Working Duty Cycle: 0% to 100%
