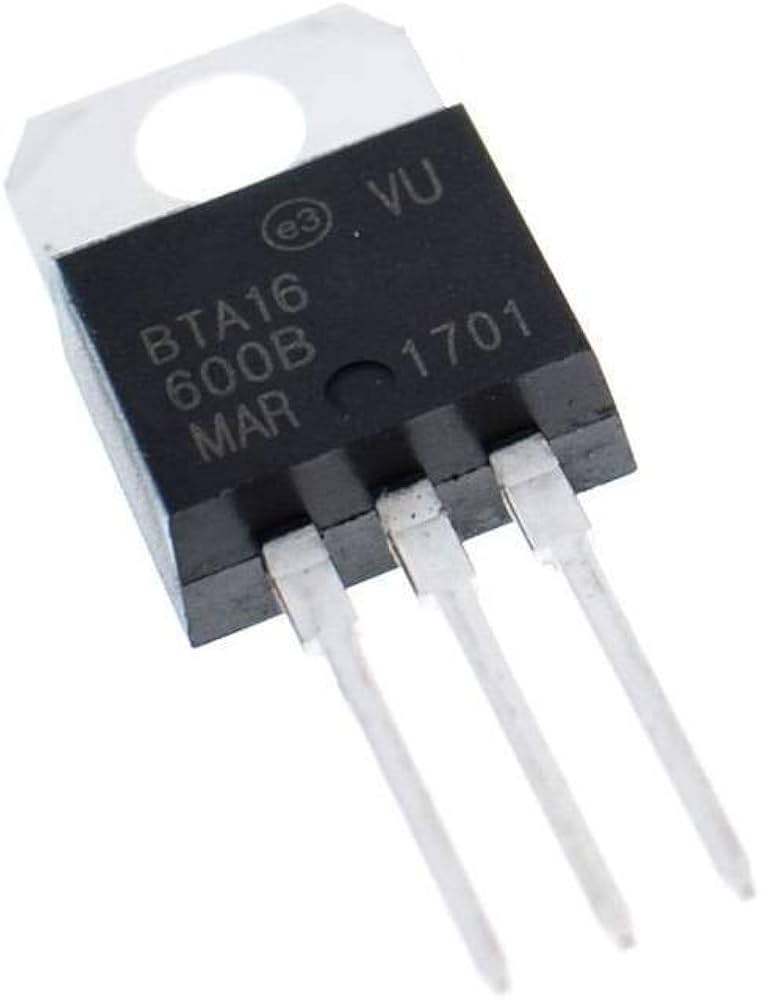

BTA16-600B IC 16A Triac 600V TO-220 ST BTA16-600B

Product Overview

The BTA16-600B is a 16 A standard (4-quadrant) Triac designed for general-purpose AC power switching and phase-control applications. Utilizing a low thermal resistance clip-bonding construction, it handles medium AC loads reliably. It is widely implemented in system applications such as static relays, industrial heating regulation, motor speed controllers, and light dimmers. Featuring an internal ceramic insulation pad, this BTA series device provides an insulated tab rated at 2500 V, allowing direct attachment to heat sinks without requiring separate electrical insulation.

Core Specifications

• Manufacturer: STMicroelectronics

• Package Type: TO-220AB Insulated

• Function: Standard 4-Quadrant Triac (AC Switch)

• On-State RMS Current: 16 A

• Repetitive Peak Off-State Voltage: 600 V

• Triggering Gate Current: 50 mA Max.

• Control Interface: Gate triggering control (Standard 4-quadrant operation)
