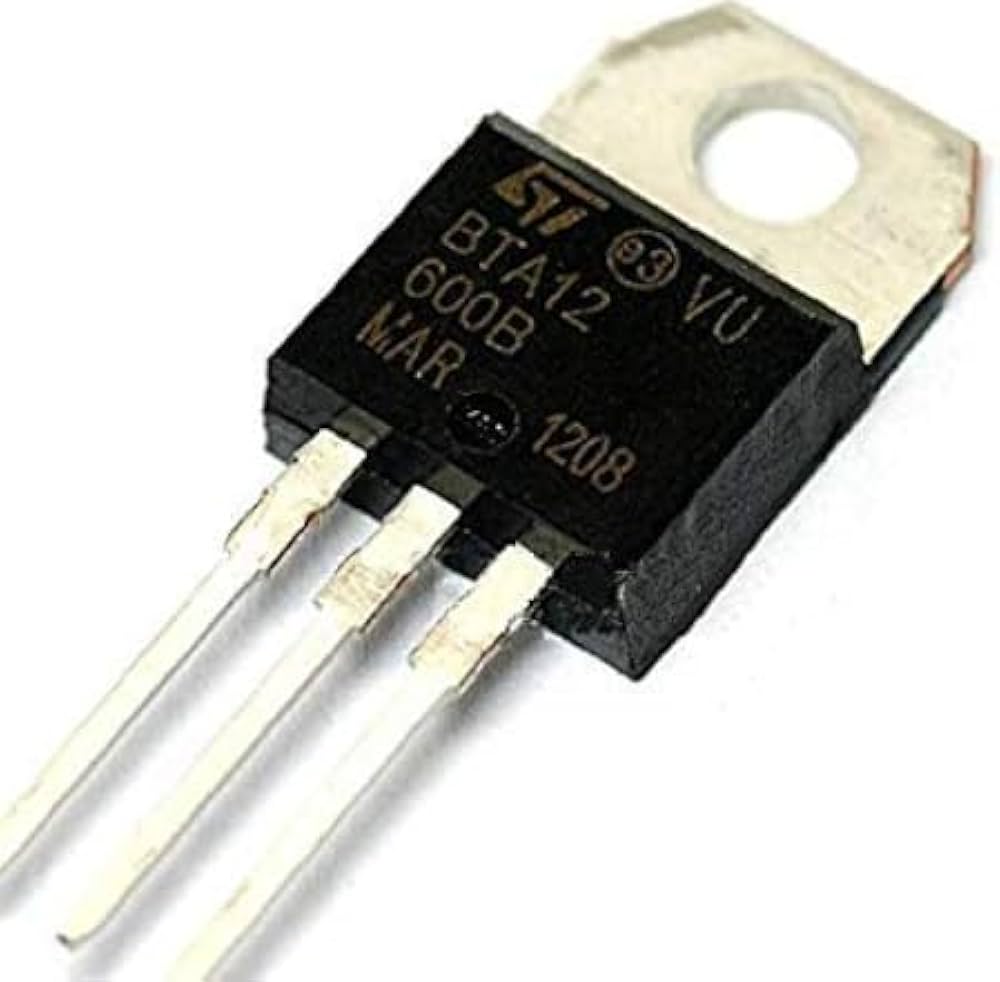

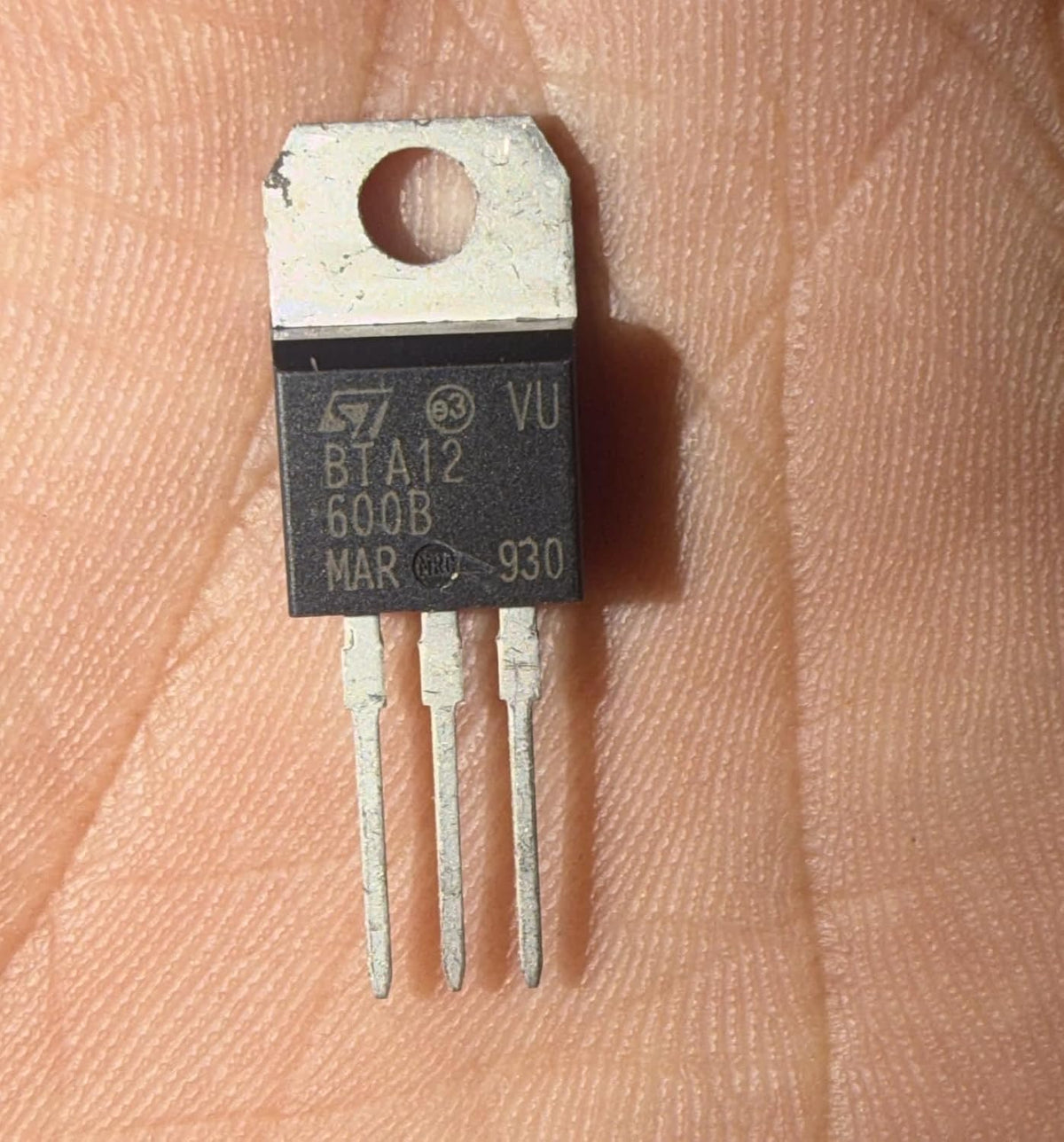

BTA12-600B IC ST Triac TO-220 BTA12-600B

Product Overview

A high-performance, Snubberless™ bidirectional triode thyristor (TRIAC) engineered for robust AC power switching and phase control applications. Capable of handling a continuous RMS on-state current of up to 12A and enduring a repetitive peak off-state voltage of 600V, this device is highly optimized for controlling inductive loads without requiring an external snubber circuit. It is housed in an isolated ITO-220AB package, which features an internal ceramic insulation layer that simplifies thermal management by allowing direct mechanical mounting to a heatsink. With a high surge current rating of 120A and a broad operating temperature range up to +125°C, it is an ideal choice for motor speed controllers, light dimmers, static relays, and domestic heating appliances.

Core Specifications

• Manufacturer: STMicroelectronics (ST)

• Package Type: ITO-220AB-3 (Internally Isolated)

• Function: 12A, 600V Snubberless™ TRIAC for AC Load Control (MPN: BTA12-600BWRG / LCSC Part #C427100)

• Input Voltage: Maximum peak off-state repetitive voltage (VDRM) of 600V

• Control Interface: Gate terminal control requiring a 50mA gate trigger current (IGT) and a 1.3V gate trigger voltage (VGT) to initiate conduction across three quadrants.
