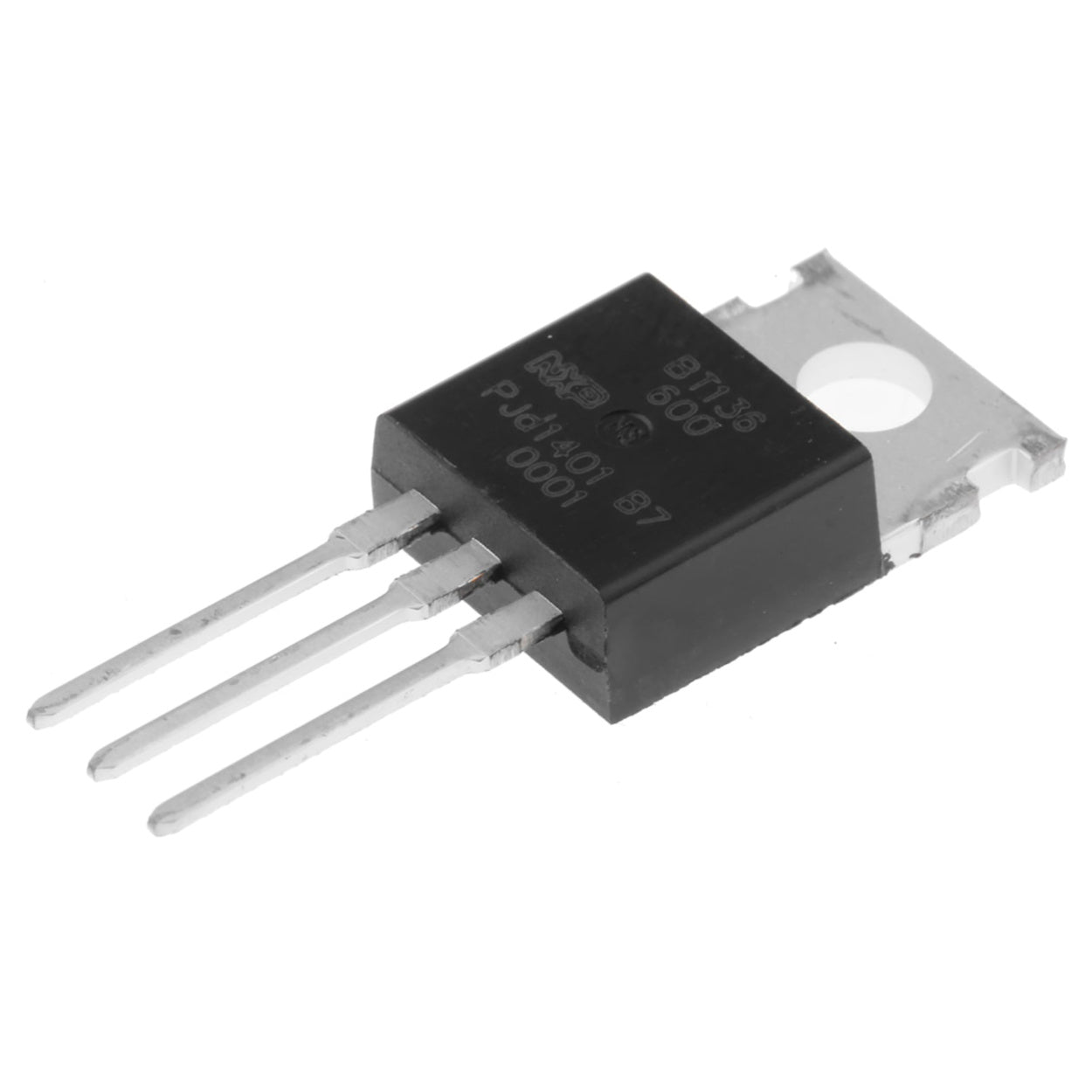

BT136-600D IC WEEN TO220 4A TRIAC BT136-600D

Product Overview

The BT136-600D is a planar passivated, very sensitive gate four-quadrant triac housed in a SOT78 plastic package. It is engineered for general-purpose bidirectional switching and phase control applications where high sensitivity is required across all four quadrants. Featuring a "series D" highly sensitive gate, this device is designed to interface directly with microcontrollers, logic integrated circuits, and other low-power gate trigger circuits.

Core Specifications

• Manufacturer: WeEn Semiconductors

• Package Type: SOT78 (TO-220AB, Plastic Package)

• Function: 4-Quadrant Very Sensitive Gate Triac (AC Switch)

• On-State RMS Current: 4 A

• Repetitive Peak Off-State Voltage: 600 V

• Triggering Gate Current: 5 mA Max. (Quadrants I-II-III-IV)

• Control Interface: Direct gate triggering compatible with low-power drivers and logic levels.
