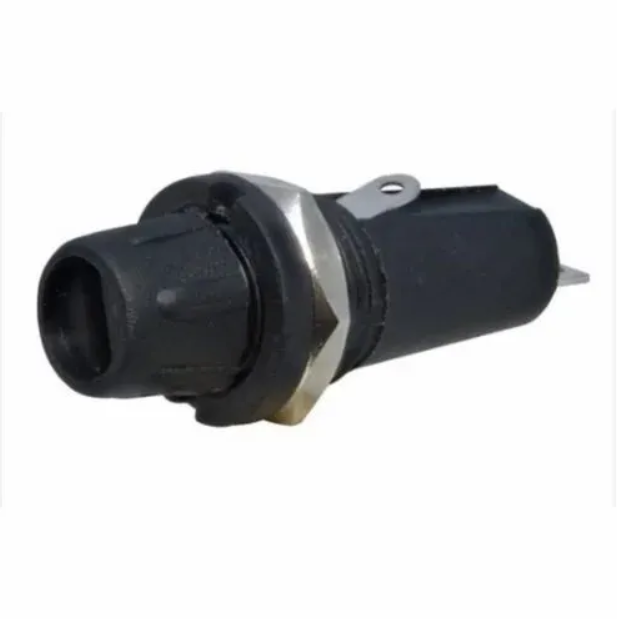

Black FH1 Fuse Holder ELCOM for 5X20mm fuse

Mounting Style: Panel Mount
Operating Temperature: -20°C to +85°C
Soldering Temperature: 270°C / 5 sec max.
Panel Thickness: 3.0 mm max.
Material: Polyamide G.F.
Insulation Resistance: 1000 MΩ min.
H.V. Breakdown: 2 KV AC / 1 min
Current Carrying Parts: Brass, Tin Plated
Contact Resistance: 10 mΩ max.
Cap Design: Screw-In
Weight: 4.1 g
Fuse Size: 5 × 20 mm
Rating: 6.3A / 250V AC
Terminals: Solder-Type

Part Number:
