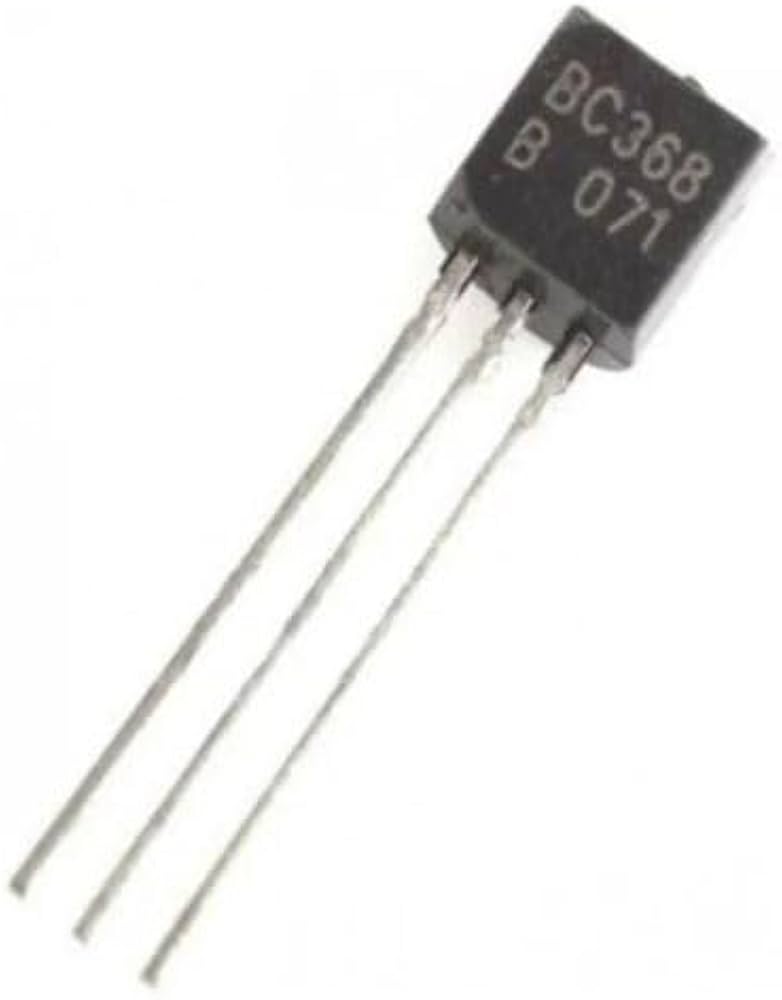

BC368 Transistor 25V 1A NPN TRANSISTOR 368 CDIL BC368

Product Overview

The BC368 is a medium-power NPN bipolar junction transistor (BJT) designed for general-purpose switching and driver applications. Its relatively high current handling capability (up to 1A) in a compact TO-92 package makes it an excellent choice for driving small motors, relays, or light-emitting diode (LED) arrays in circuits where space is at a premium. It is frequently used in industrial control systems and consumer electronics where a robust, small-signal transistor is needed to switch moderate loads.

Core Specifications

• Manufacturer: CDIL (Continental Device India Limited)

• Package Type: TO-92 (Through-Hole)

• Component Type: NPN Silicon Transistor

• Collector-Emitter Voltage ($V_{CEO}$): 25V

• Collector-Base Voltage ($V_{CBO}$): 30V

• Emitter-Base Voltage ($V_{EBO}$): 5V

• Continuous Collector Current ($I_C$): 1A

• Peak Collector Current ($I_{CM}$): 2A

• Power Dissipation ($P_{tot}$): 625mW (at $T_A = 25^\circ C$)

• DC Current Gain ($h_{FE}$): 85 to 375 (at $I_C = 150mA, V_{CE} = 2V$)

• Transition Frequency ($f_T$): 100 MHz (Typical)

• Marking Code: BC368

• Part Number: BC368
