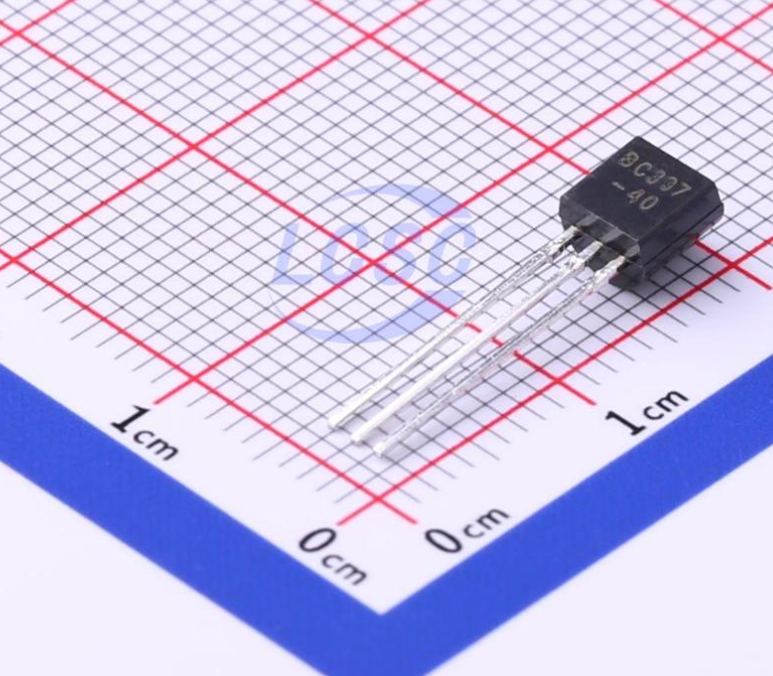

BC337 Transistor TO92 NPN Transistor 800 mA 45V LGE BC337-40

Product Overview:

A through-hole NPN silicon epitaxial planar small-signal bipolar junction transistor housed in a standard TO-92 plastic package. Designed for medium-current, low-voltage amplification and high-speed switching applications, it provides excellent current gain linearity and low saturation voltage. It is frequently employed in driving small relays, LEDs, audio driver stages, and general-purpose logic switching circuits. It serves as the direct complementary NPN pair to the PNP BC327 transistor.

Core Specifications:

• Manufacturer: LGE (LGE Semiconductor)

• Package Type: TO-92

• Function: NPN General-Purpose / Medium-Current Transistor

• Maximum Collector-Emitter Voltage ($V_{CEO}$): 45V

• Maximum Continuous Collector Current ($I_C$): 800mA (0.8A) (Peak current $I_{CM} = 1.6\text{A}$)

• Maximum Collector Power Dissipation ($P_C$): 625mW (at ambient temperature $T_a = 25^\circ\text{C}$)

• Common Marking Code: BC337-40
