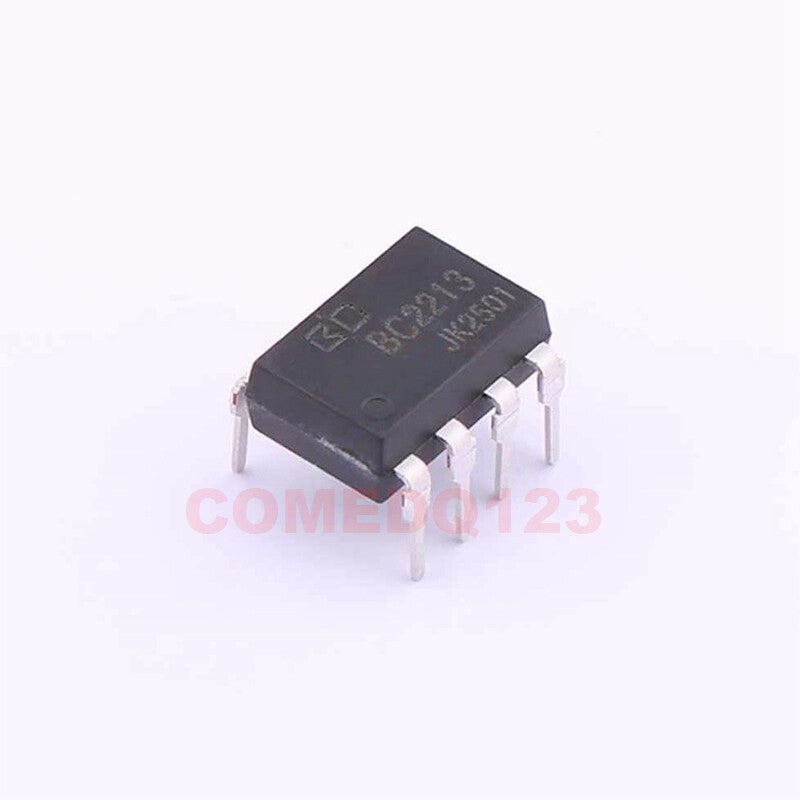

BC2213 IC Solid State Relays DIP-7 BC2213

Product Overview

The BC2213 is a monolithic solid-state phototriac relay designed for PCB-mount AC load switching. Operating with a Form 1a (normally open) contact configuration, it incorporates a "zero-cross" (zero-on) triggering mechanism to ensure synchronous and low-noise switching. The device features an optocoupled architecture providing a high input-to-output dielectric isolation breakdown voltage of 5,000 VAC. It handles a repetitive peak OFF-state voltage of 600V and an RMS on-state load current up to 0.9A, making it ideal for domestic household appliances like air conditioners, washing machines, and refrigerators.

Core Specifications

• Manufacturer: GC (Shaanxi, China)

• Function: PCB-Mount Phototriac Solid-State Relay (Zero-Cross Type)
