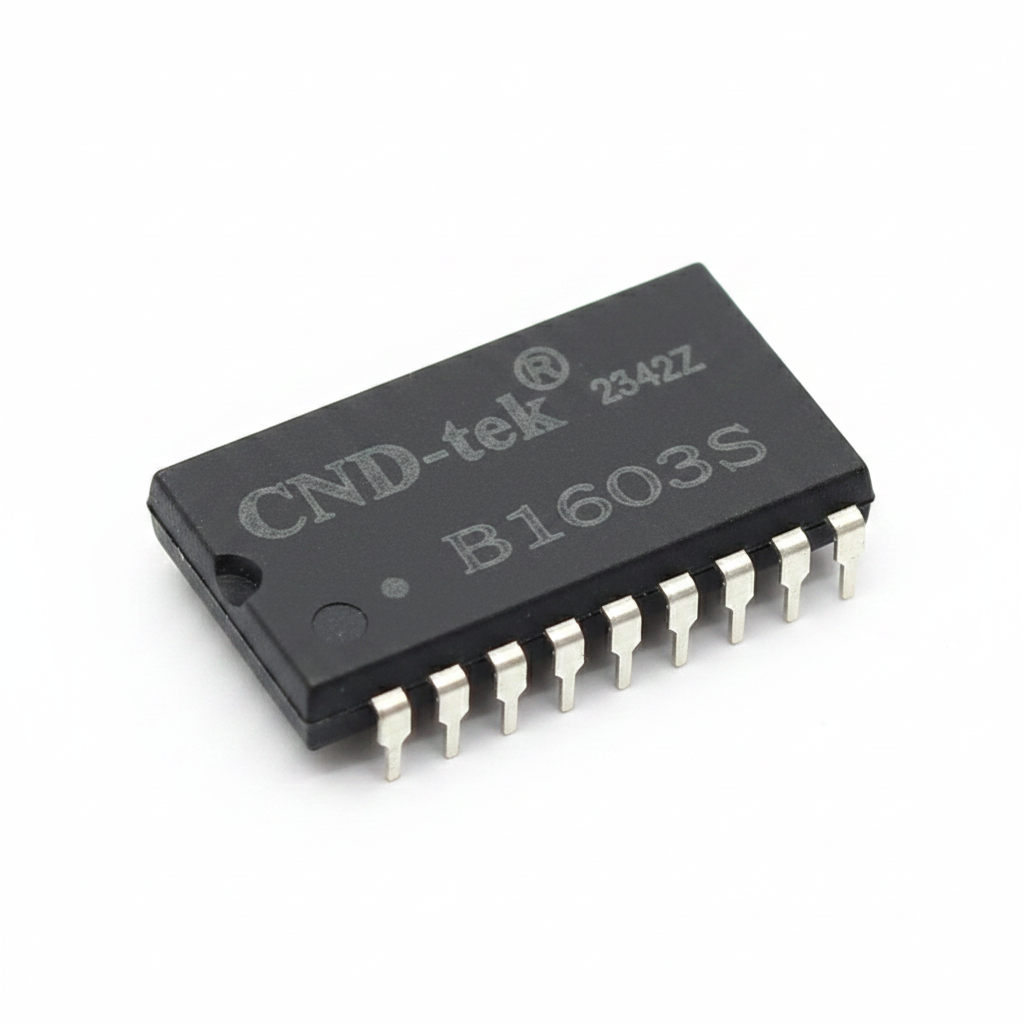

B1603S 1:1 Pulse Transformer CND-tek 100Mbps 1.5kV Isolation SMD-16 12.7x7.1mm

Product Overview: A low-profile surface-mount single-port transformer module designed for 10/100Mbps Ethernet networking applications, providing critical signal isolation, impedance matching, and baseline wander compensation to enhance electromagnetic compatibility (EMC) and system performance.

Core Specifications:

Manufacturer: CND-tek

Part Number: B1603S

Function: 10/100BASE-T Transformer Module

Turns Ratio: 1CT:1CT (Transmit and Receive)

Operating Temperature: 0°C to +70°C

Isolation Voltage: 1500 Vrms (1 minute)
