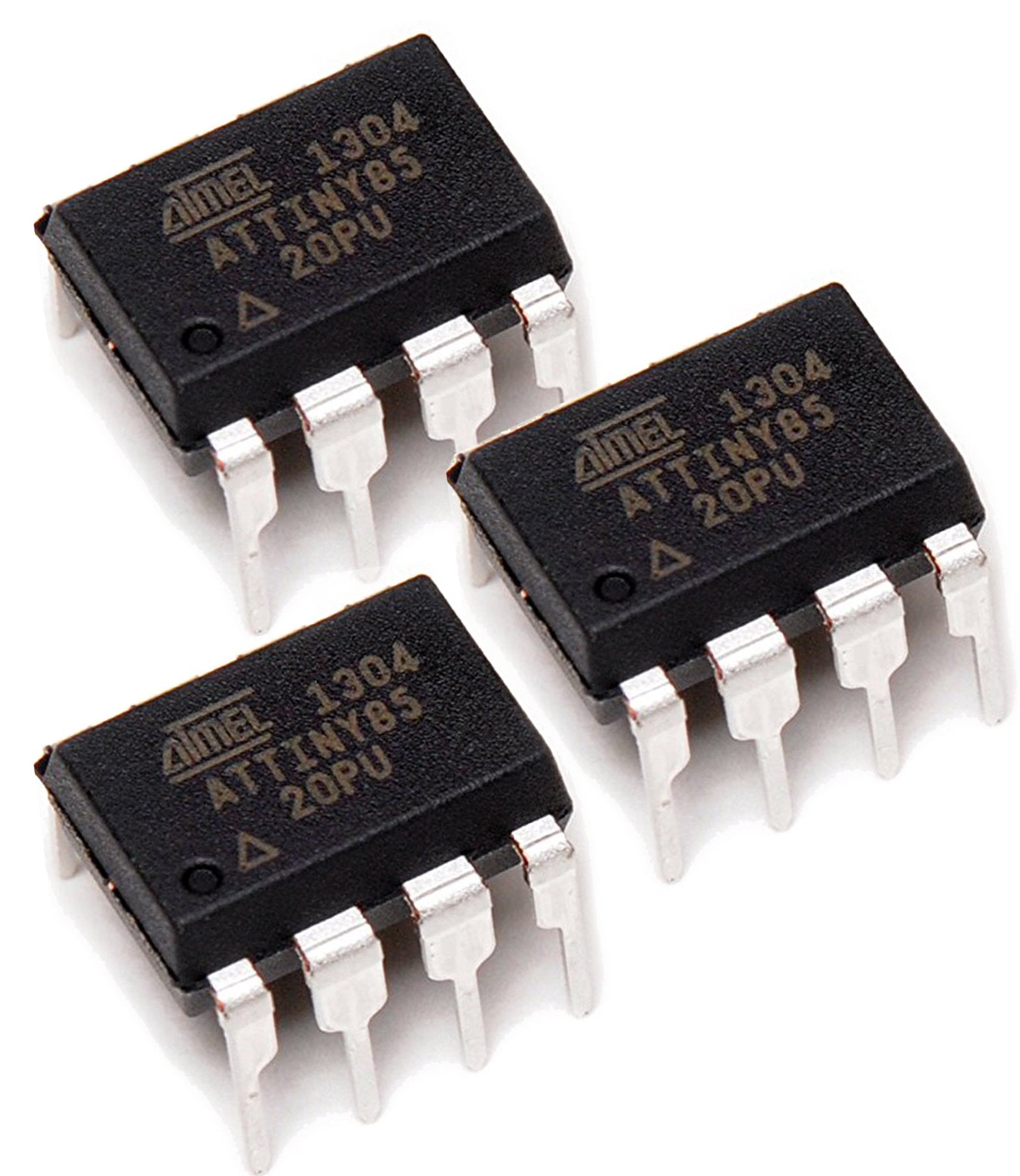

ATTINY85 IC 20PU DIP-8 ATTINY85-20PU

Product Overview

A high-performance, low-power 8-bit AVR RISC-based microcontroller designed to pack robust processing capabilities into a highly compact footprint. This device combines 8 KB of in-system programmable flash memory, 512 bytes of high-endurance EEPROM, and 512 bytes of internal SRAM, executing powerful instructions in a single clock cycle to achieve throughputs approaching 1 MIPS per MHz at a maximum speed of 20 MHz. Featuring an integrated 10-bit Analog-to-Digital Converter (ADC), a built-in factory-calibrated oscillator, and flexible power-saving modes, it is highly optimized for space-constrained, battery-operated embedded applications, smart sensors, and consumer electronics prototyping.

Core Specifications

• Manufacturer: Microchip Technology (MICROCHIP)

• Package Type: PDIP-8 (8-pin Plastic Dual Inline Package)

• Function: 8-Bit AVR Microcontroller with 8KB In-System Programmable Flash (MPN: ATTINY85-20PU / LCSC Part #C965497)

• Input Voltage: 2.7V to 5.5V operating supply voltage range

• Control Interface: 6 programmable general-purpose I/O lines supporting up to 4 channels of 10-bit A/D conversion, internal hardware timers/counters, and a Universal Serial Interface (USI) for hardware communication.
