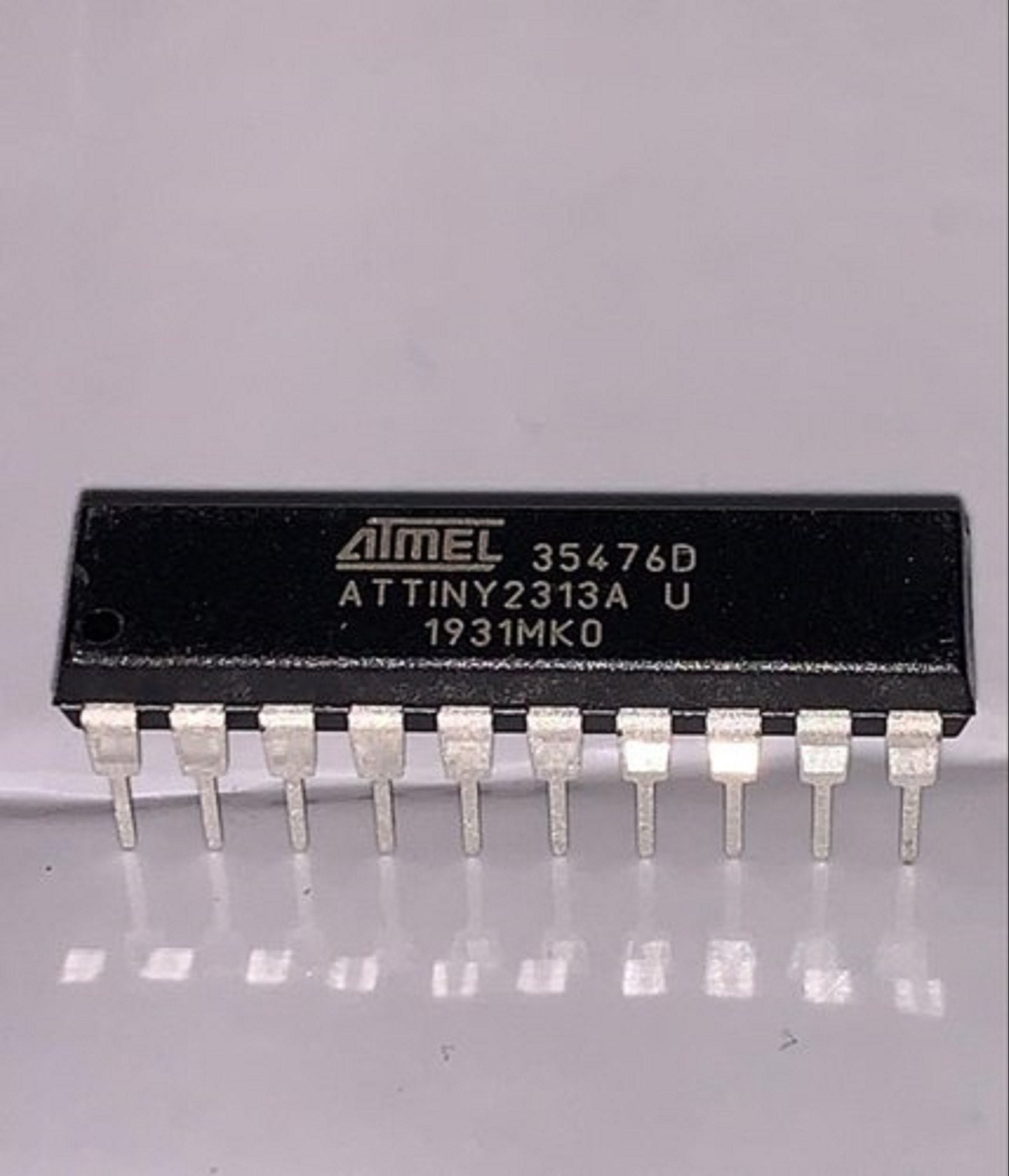

ATTINY2313A-PU IC DIP20 MCP ATTINY2313A-PU

Product Overview

A high-performance, low-power 8-bit AVR RISC-based microcontroller designed to provide efficient, hardware-defined processing control within a standard 20-pin through-hole footprint. This device integrates 2 KB of flash program memory, 128 bytes of high-endurance EEPROM, and a compact internal SRAM layout, executing complex instructions in a single clock cycle to achieve a throughput approaching 1 MIPS per MHz at a maximum speed of 20 MHz. Operating over a wide voltage range (1.8V to 5.5V) and an industrial temperature spectrum (-40°C to +85°C), it features a built-in internal oscillator to minimize external component counts. With 18 programmable I/O lines, it is highly optimized for cost-effective embedded systems, system-level house-keeping, logic gate consolidation, and small-scale automation projects.

Core Specifications

• Manufacturer: Microchip Technology (MICROCHIP)

• Package Type: DIP-20 (20-pin Dual Inline Package)

• Function: 8-Bit AVR Microcontroller with 2KB In-System Programmable Flash (MPN: ATTINY2313A-PU / LCSC Part #C112165)

• Input Voltage: Wide 1.8V to 5.5V operating supply voltage range

• Control Interface: 18 programmable general-purpose I/O (GPIO) lines supporting external interrupts, hardware timers/counters, and serial communication interfaces synchronized by an internal built-in oscillator.
