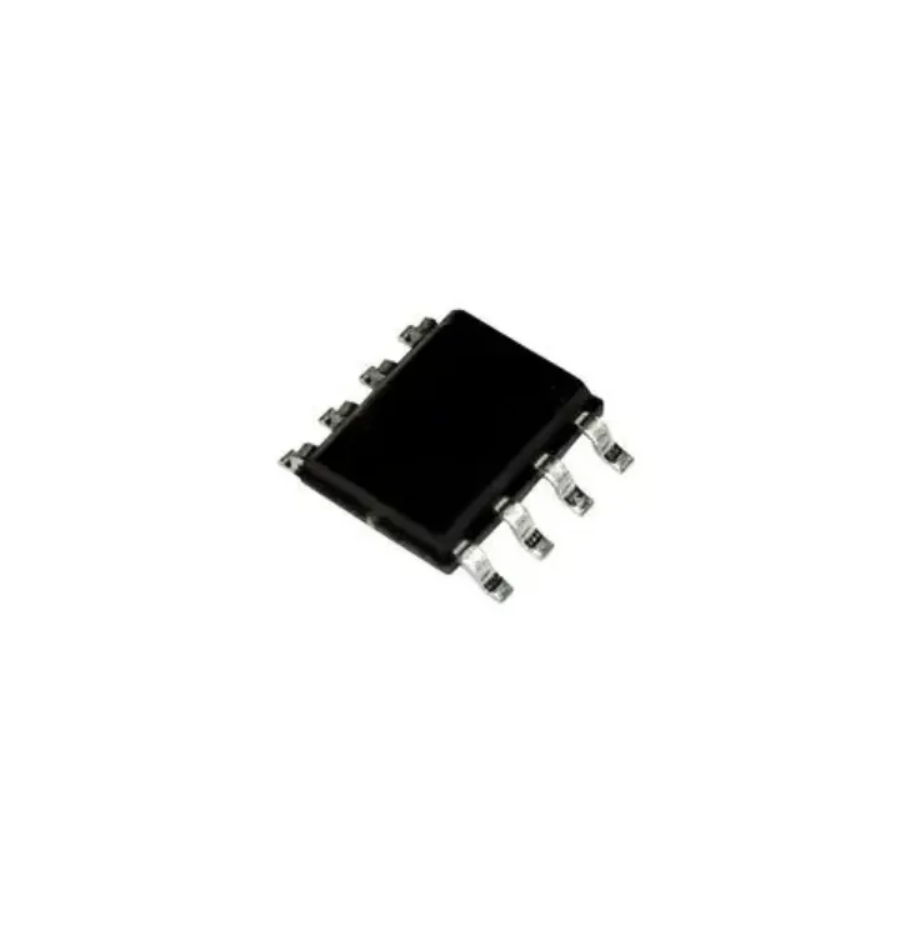

AT24C256C-SSHL SMD IC EEPROM 24c256 SOP8 AT24C256C-SSHL-SOIC-8

Product Overview:
A surface-mount, 256-Kbit serial electrically erasable and programmable read-only memory (EEPROM) integrated circuit organized as 32,768 words of 8 bits each. It is optimized for low-power and low-voltage operation in industrial and commercial system configurations, featuring a cascading architecture that allows up to eight separate devices to share a single communication bus.

Core Specifications:

Manufacturer: Atmel Corporation

Package Type: 8-lead JEDEC SOIC / 8-lead TSSOP

Function: 256-Kbit Serial EEPROM Memory

Input Channels: 3 Device Address Inputs ($A_0, A_1, A_2$) , 1 Hardware Write Protect Input (WP)

Control Interface: I2C-Compatible (2-Wire) Serial Interface
