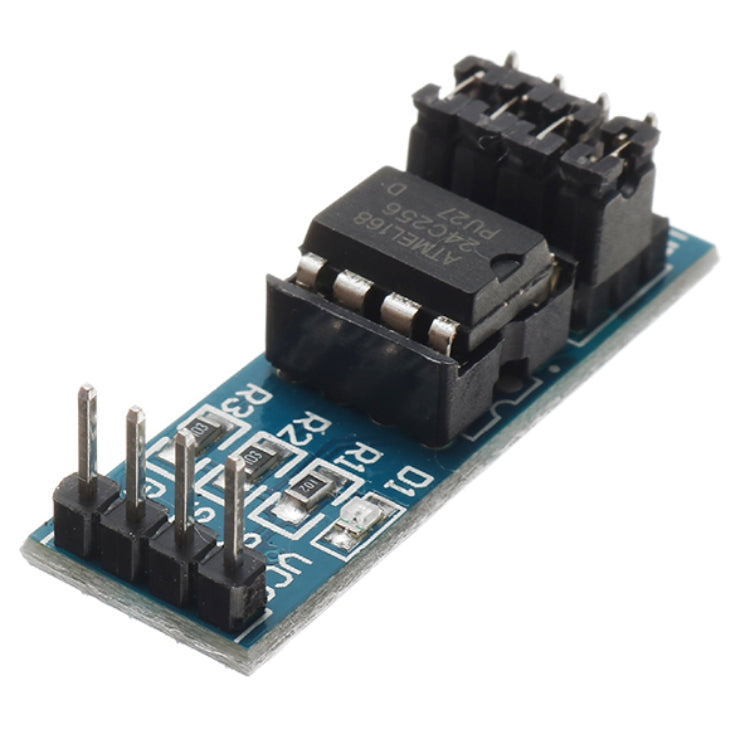

AT24C256 EEPROM Memory Module 24C256 I2C Interface AT24C256

Description:

If you need to do some data storage in Arduino, then using the EEPROM Memory Module is probably the most simple practice. In actuality, Arduino used the ATmega chip itself has a certain EEPROM memory, but only a limited number. Here is the external EEPROM memory module which uses the I2C bus line to connect with Arduino, and with a pluggable chip, inserted in this series, so it will easy to expand the capacity, basically just need to insert a bigger capacity EEPROM chip.

The EEPROM Memory Module is based on EEPROM chips of AT24C series, 256Kbit capacity, that’s 32k bytes. The EEPROM module communicates with Arduino through the I2C interface. It will be better to use Arduino-Sensor-Shield-V4.0 and the Arduino-I2C-COM-Cable.

Specifications:

• Chipset: AT24C256
• Maximum Operating Voltage: 6.25V
• Output Current: 5mA
• Operating Temperature: -55 ~ +125°C
• Storage Temperature: -65 ~ +150°C
