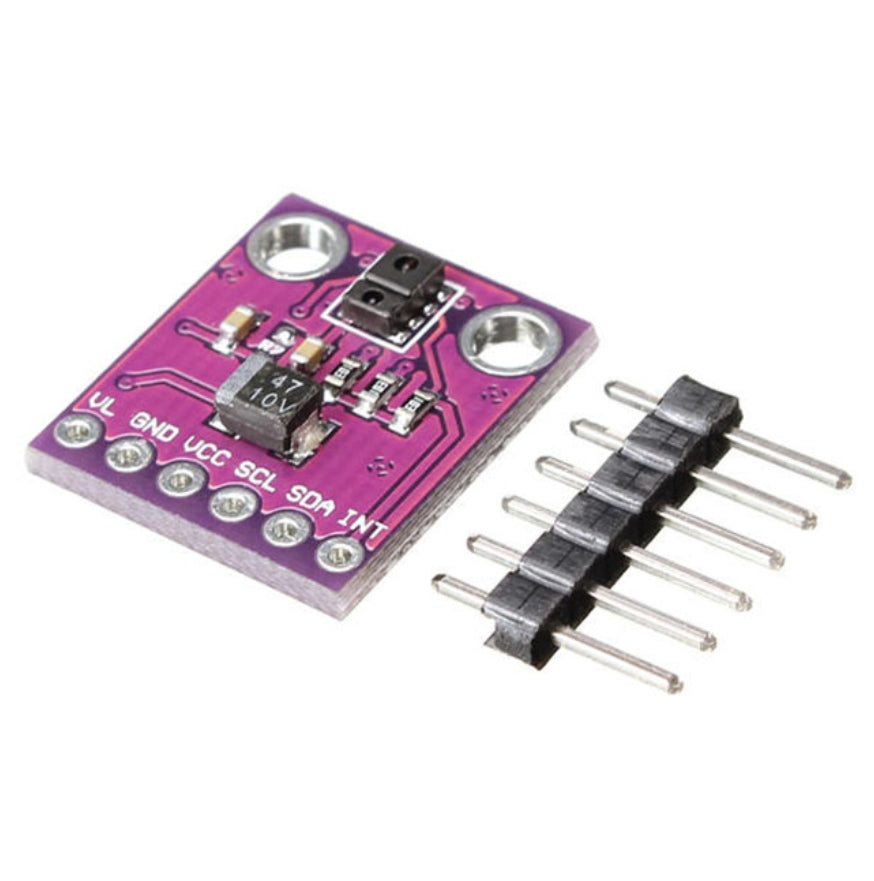

APDS9900 Sensor Module I2C APDS-9900

Features:

• Optical modules integrated with ALS, infrared LEDs, and proximity detectors
• Ambient Light Sensing (ALS)
• Approximate human visual response
• Programmable interrupt capability with upper and lower thresholds
• Up to 16-bit resolution
• High sensitivity operation behind dark glass
• 0.01lux low lumen performance
• Proximity detection
• Fully calibrated to 100 mm detection
• Integrated infrared LED and synchronous LED driver
• Eliminates factory calibration of the proximity sensor
• Programmable wait timer
• Wait for state power consumption – 90μA typical
• Programmable range from 2.7 ms to more than 8 seconds
• I2C interface compatible
• Up to 400kHz (I2C fast mode)
• Dedicated interrupt pin.
