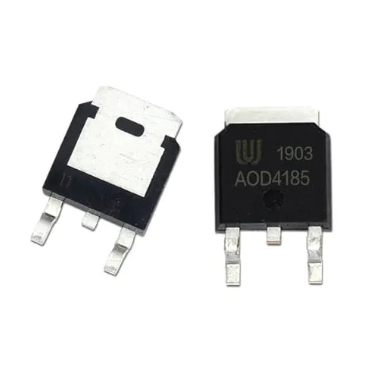

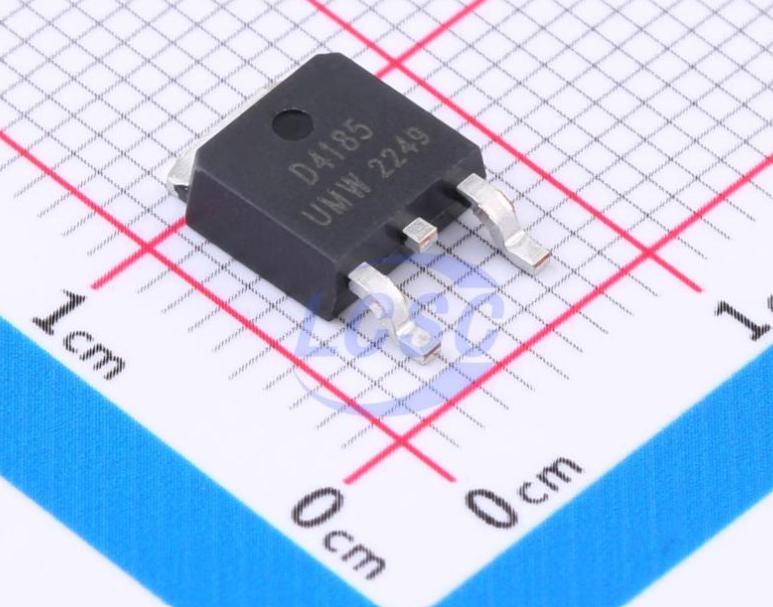

AOD4185 SMD MOSFET P-Channel TO252 40V 40A 4185 UMW AOD4185(UMW)

Product Overview

A surface-mount P-Channel power MOSFET designed using advanced trench technology to provide excellent on-resistance (RDS(on)) and low gate charge. Its robust TO-252 package provides superior thermal dissipation, making it highly efficient for high-power switching, reverse battery protection, load switching, and motor control applications where a P-Channel configuration simplifies the driving circuitry.

Core Specifications

• Manufacturer: UMW (Youtai Semiconductor)

• Package Type: TO-252 (DPAK)

• Function: SMD MOSFET (P-Channel)

• Voltage Rating: -40V

• Current Rating: -40A

• Marking Code: 4185

• Part Number: AOD4185 / AOD4185(UMW)
