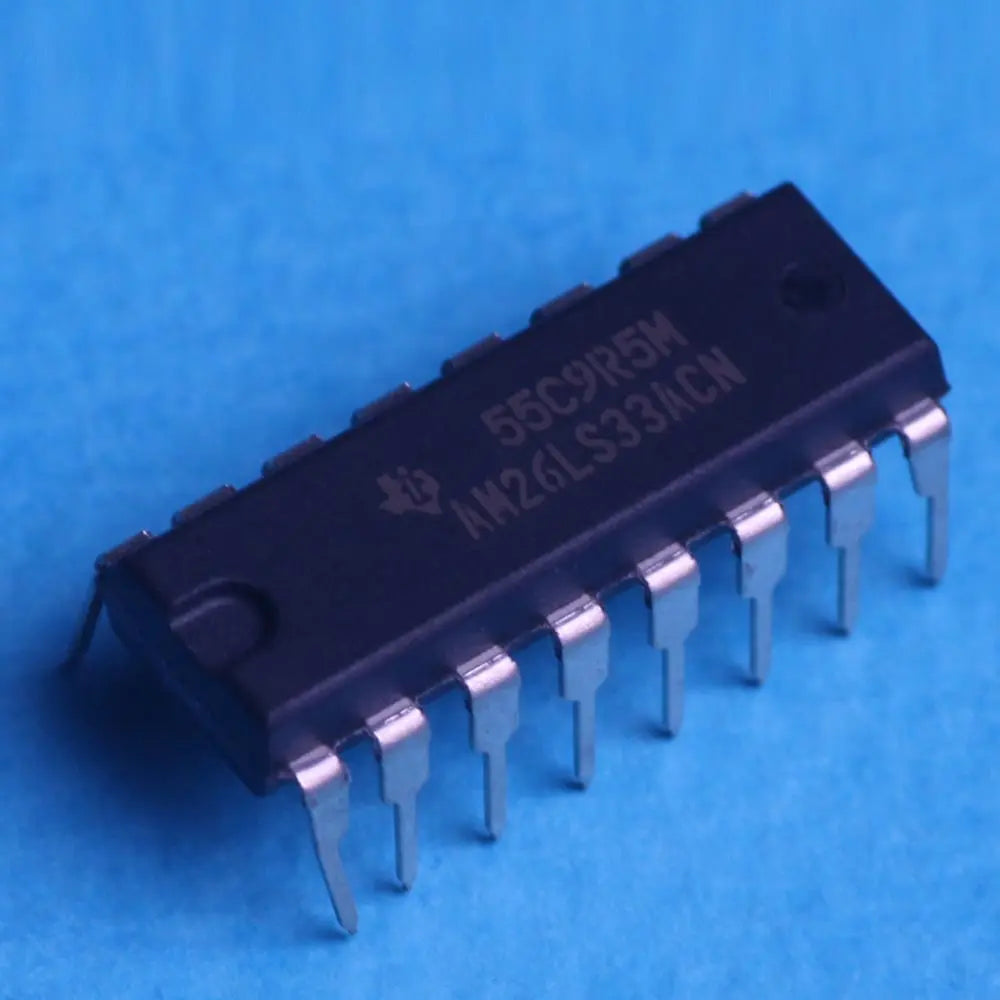

AM26LS33ACN AIC Quadruple Differential Line Receivers TI DIP-1 AM26LS33ACN

Product Overview: The AM26LS33ACN is a quadruple differential line receiver designed for balanced and unbalanced digital data transmission. It features a common enable function that provides a choice between active-high or active-low inputs. Its 3-state outputs allow direct integration into bus-organized systems, while a built-in fail-safe design ensures that the outputs default to a high state if the inputs are left open. Compared to the standard AM26LS33, the "A" version incorporates an additional amplification stage that vastly improves input sensitivity and increases input impedance, minimizing bus line loading.

Core Specifications:

• Manufacturer: Texas Instruments Incorporated

• Package Type: 16-pin Plastic Dual-In-Line Package (PDIP) (N suffix)

• Function: High-sensitivity quad differential line receiver offering a wide +/-15-V common-mode input voltage range with a +/-500-mV input sensitivity, operating from a single 5-V supply across a temperature range of 0°C to 70°C.
