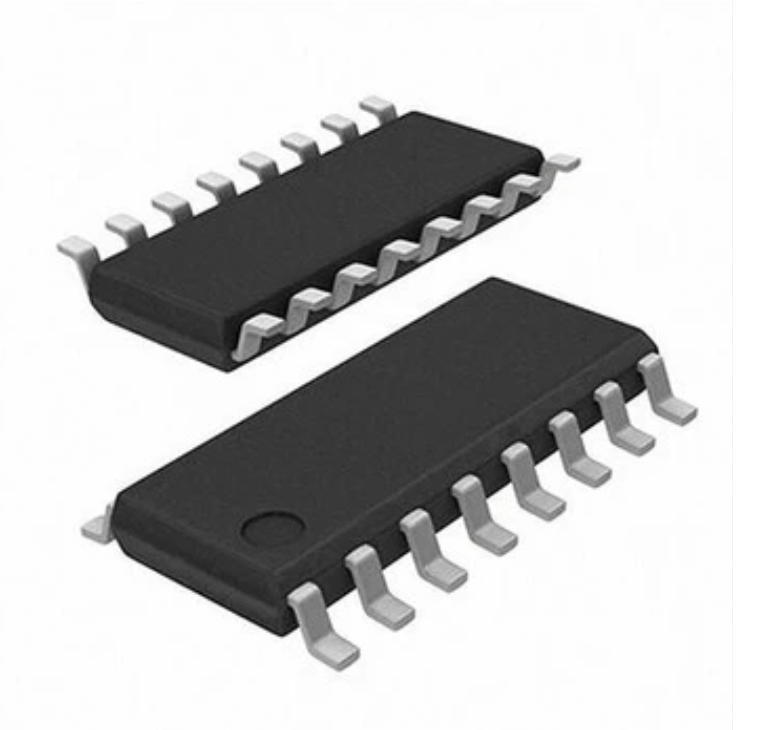

AM26C32ACDR SMD IC Quadruple Differential Line Receivers SOIC16 TI AM26C32- SOIC-16

Product Overview:

A surface-mount, quad differential line receiver integrated circuit designed for high-speed digital data transmission in balanced or unbalanced systems. It features a fail-safe design and tri-state outputs, making it ideal for robust industrial and automotive communication interfaces.

Core Specifications:

Manufacturer: Texas Instruments

Package Type: Available in various packages including SOP, TSSOP, and DIP

Function: Quad Differential Line Receiver

Input Channels: 4 Differential Input Pairs

Control Interface: TTL/CMOS-compatible Logic Inputs (Enable pins)

Features:

• Meets or exceeds ANSI TIA/EIA-422-B, TIA/EIA-423-B, and ITU V.10/V.11 requirements

• Low power consumption ($I_{CC} = 10mA$ typical)

• Input common-mode range: ±7V with ±200mV sensitivity

• Input hysteresis: 60mV (typical) for improved noise immunity

• Fast propagation delay: 17ns (typical)

• Fail-safe design: Outputs remain in a logic high state when inputs are open

• Three-state outputs for direct connection to bus-organized systems

Applications:

• Factory automation and process control

• ATM and money-counting machines

• Smart grid infrastructure

• AC and servo motor drives

• High-reliability automotive communication systems
