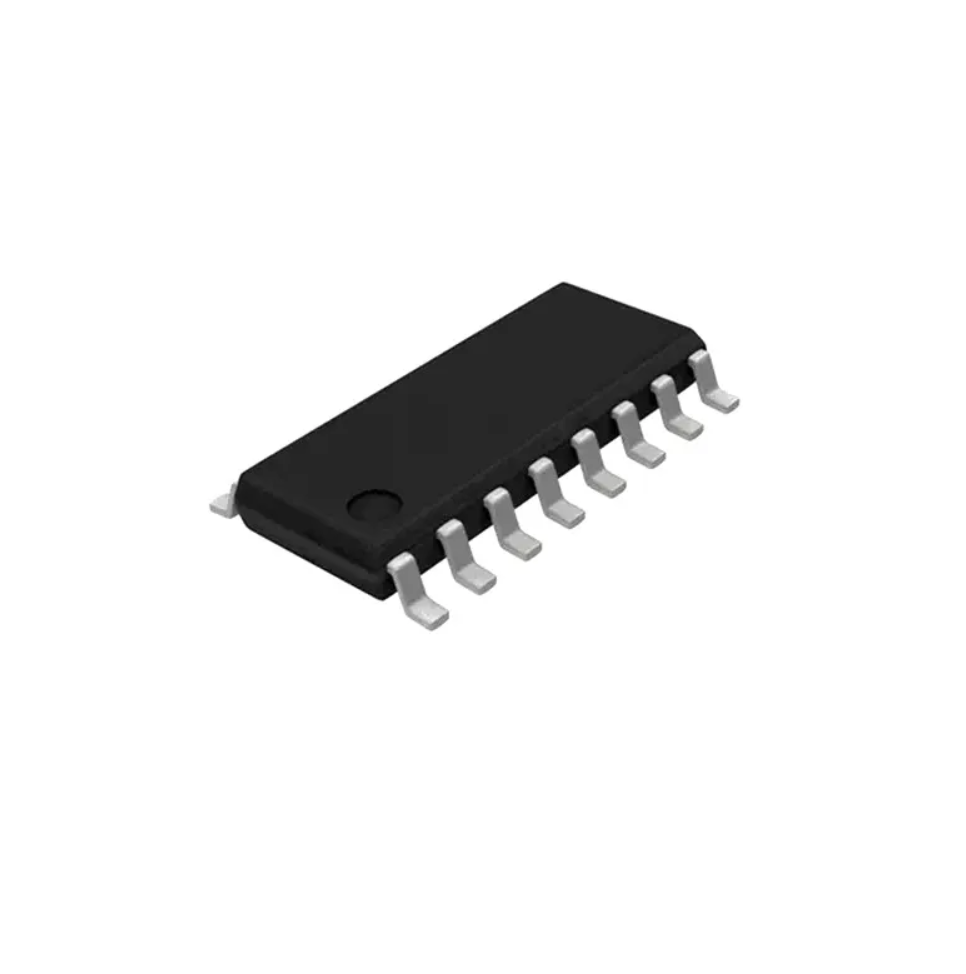

AM26C31CDR SMD IC Quadruple Differential Line Receivers TI SOIC16 AM26C31CDR

Product Overview:

A high-speed, quad differential line driver integrated circuit designed to meet the requirements of TIA/EIA-422-B and ITU V.11 standards, specifically tailored for high-reliability balanced data transmission in industrial and military applications.

Core Specifications:

Manufacturer: Texas Instruments

Package Type: Available in various packages, including CDIP, PDIP, SO, CFP, SOIC, SSOP, TSSOP, and LCCC

Function: Quad Differential Line Driver

Input Channels: 4-Channel Differential Line Driver

Control Interface: BiCMOS circuit with active high/low enable inputs

Features:

• Compliance with ANSI TIA/EIA-422-B and ITU V.11 standards

• Low power consumption ($I_{CC} = 100\mu A$ typical)

• High speed (typically $t_{PLH} = t_{PHL} = 7ns$)

• Low pulse distortion ($t_{sk(p)} = 0.5ns$ typical)

• High output impedance during power-off condition

• Improved replacement for AM26LS31 devices

Applications:

• Motor control (brushless DC and brushed DC)

• Chemical and gas sensors

• Field transmitters (temperature and pressure sensors)

• Military and avionics imaging systems

• Radar and sonar systems
