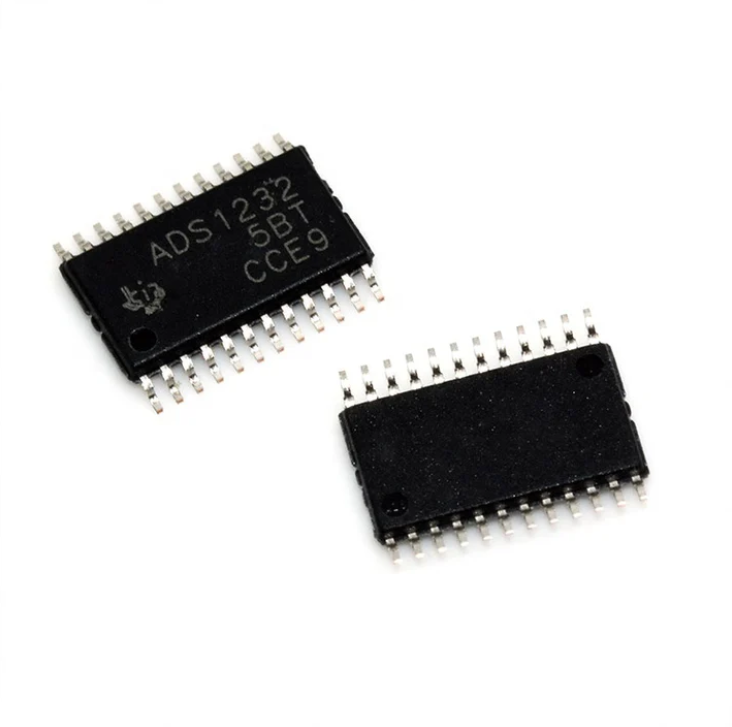

ADS1232IPWR SMD IC ADC 24 BIT 24-Pin TSSOP ADS1232IPWR

Product Overview: A precision 24-bit analog-to-digital converter (ADC) featuring an onboard, low-noise programmable gain amplifier (PGA) and internal oscillator, designed as a complete front-end solution for bridge sensor applications such as weigh scales, strain gauges, and pressure sensors.

Core Specifications:

Manufacturer: Texas Instruments

Package Type: TSSOP-24 (ADS1232) or TSSOP-28 (ADS1234)

Function: 24-Bit Analog-to-Digital Converter

Input Channels: Two differential inputs (ADS1232) or four differential inputs (ADS1234)

Control Interface: Simple pin-driven control (no digital registers to program)

Features:

• Onboard, low-noise programmable gain amplifier (PGA) with selectable gains of 1, 2, 64, and 128

• High-resolution delta-sigma ADC with 23.5-bit effective resolution

• Flexible clocking via internal oscillator or optional external crystal

• Selectable data rates of 10SPS (with 50Hz/60Hz rejection) and 80SPS

• Easily-isolated serial interface compatible with MSP430 and other microcontrollers

Applications:

• Weigh scales

• Strain gauges

• Pressure sensors

• Industrial process control
