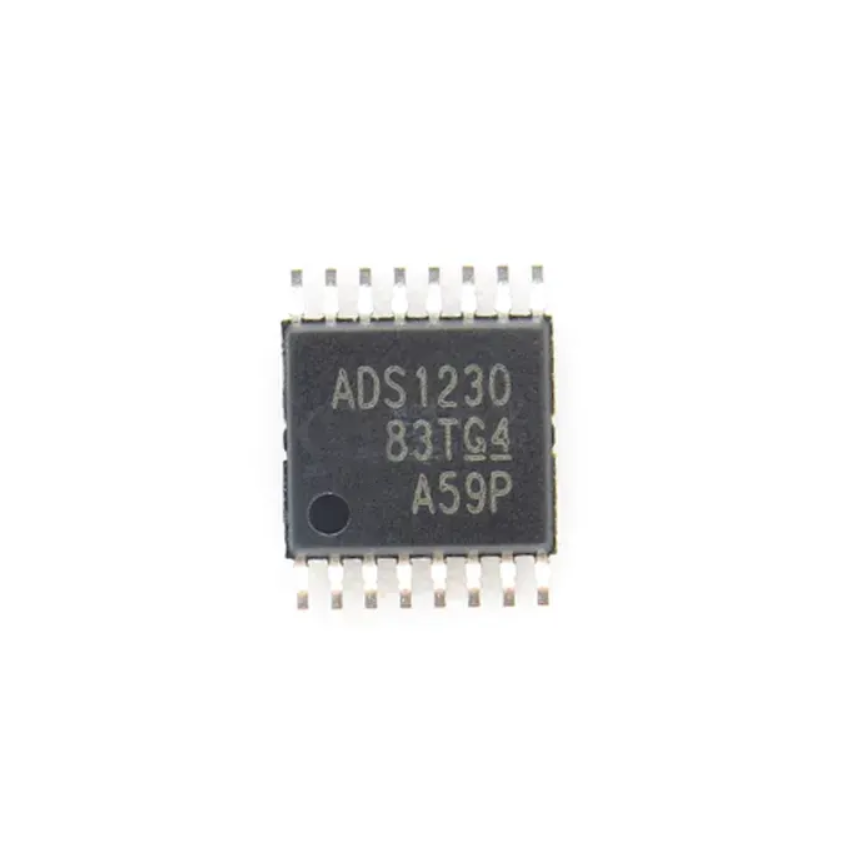

ADS1230IPWR SMD IC ADC 20 BIT TSSOP16 ADS1230IPWR

Product Overview:
A surface-mount, 20-bit analog-to-digital converter (ADC) integrated circuit designed as a complete front-end solution for bridge sensors in high-precision measurement applications. It integrates an onboard low-noise programmable gain amplifier (PGA), a precision delta-sigma ADC core, and an onboard oscillator to simplify system layout and eliminate external components in industrial weighing or pressure-sensing designs.

Core Specifications:

Manufacturer: Texas Instruments

Package Type: 16-Pin TSSOP Package

Function: 20-Bit Analog-to-Digital Converter for Bridge Sensors

Input Channels: 1 Differential Input Channel

Control Interface: Pin-Driven Control / Two-Wire Serial Digital Interface

Features:

* Complete front-end solution for bridge sensor applications including an internal low-noise PGA
* Precision 20-bit delta-sigma ADC core architecture composed of a 3rd-order modulator and 4th-order digital filter
* Selectable internal programmable gain amplifier (PGA) options of 64 or 128, supporting a full-scale differential input of $\pm39\text{ mV}$ or $\pm19.5\text{ mV}$ respectively
* High-resolution capabilities providing 18-bit noise-free resolution
* Ultra-low RMS noise floor: 40 nV at 10 SPS and 88 nV at 80 SPS under a gain configuration of 128
* Dual selectable output data sampling rates: 10 SPS or 80 SPS
* Simultaneous 50 Hz and 60 Hz electrical line frequency noise rejection at the 10 SPS data rate
* Flexible clocking options driven via the internal on-board oscillator or an external clock source
* Accepts external voltage references up to 5 V for ratiometric sensing configurations
* Simple pin-driven control layout eliminating the requirement for digital programming registers
* On-demand offset calibration capability
* Energy-conscious architecture supporting low-power standby mode and absolute power-down mode
* Wide single-supply operational voltage range from 2.7 V to 5.3 V
* Highly reliable over an extended operating temperature range specified from -40°C to +85°C

Applications:

* Electronic weigh scales and digital laboratory balances
* Strain gauge conditioning electronics and load cells
* Industrial pressure sensors and electronic torque transducers
* Automated industrial process control instrumentation systems
