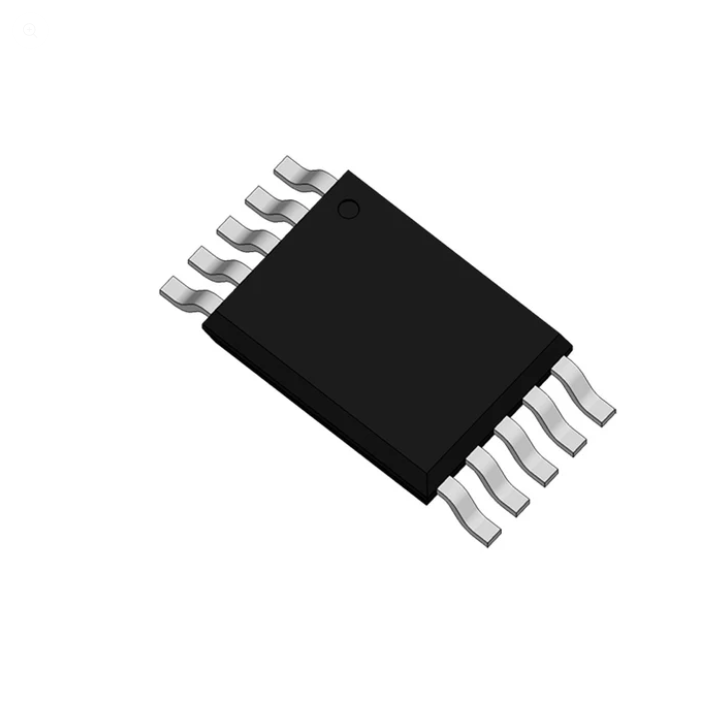

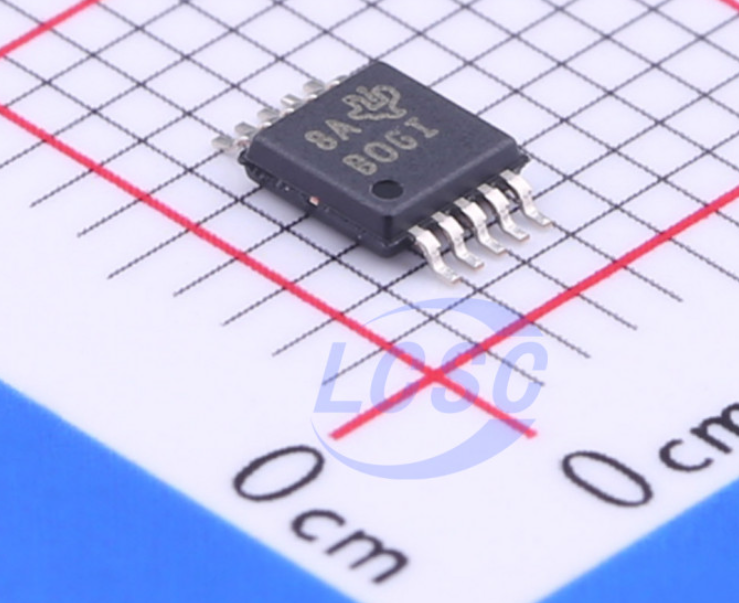

ADS1115IDGSR SMD IC 16 Bit ADC with I2C Interface Texas Instruments ADS1115-MSOP10

Product Overview:

The ADS1113, ADS1114, and ADS1115 are precision 16-bit analog-to-digital converters (ADCs) designed for ultra-low power consumption and compact applications.

Core Specifications:

• Manufacturer: Texas Instruments

• Resolution: 16 bits

• Sample Rate: Up to 860 SPS

• Interface: I2C (with pin-selectable addresses)

• Supply Voltage: 2.0V to 5.5V

• Package Type: Ultra-small QFN-10 or MSOP-10

Features:

• Internal Components: Integrated low-drift voltage reference, oscillator, and Programmable Gain Amplifier (PGA).

• Comparator: Programmable comparator (available on ADS1114 and ADS1115).

• Input Configuration:

  • ADS1113: 1 differential/single-ended channel.

  • ADS1114: 1 differential/single-ended channel.

  • ADS1115: 2 differential or 4 single-ended inputs.

• Power Consumption: Low current usage, with auto shut-down in single-shot mode.

Applications:

• Portable instrumentation

• Battery monitoring

• Temperature measurement

• Factory automation and process controls

• Consumer goods
