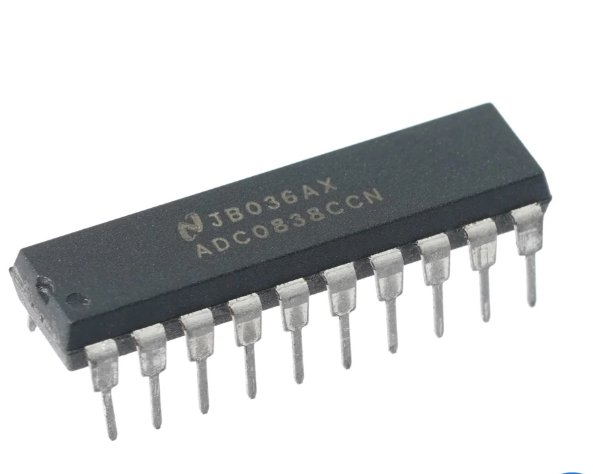

ADC0838 IC A/D converter DIP-20 ADC0838

Product Overview: An 8-bit successive approximation analog-to-digital converter (ADC) featuring a serial I/O and configurable input multiplexers (up to 8 channels), designed for easy microprocessor interfacing.

Core Specifications:

• Manufacturer: Texas Instruments

• Component Type: Analog-to-Digital Converter (ADC)

• Resolution: 8 bits

• Multiplexer Channels: 8 channels (configurable as single-ended or differential)

• Input Voltage Range: 0 V to 5 V (with single 5 V supply)

• Serial Interface: TI MICROWIRE compatible

• Additional Features: Ratiometric operation or 5VDC reference, adjustable voltage reference input, internal shunt regulator

• Logic Compatibility: TTL/MOS compatible

• Common Packages: 20-Pin PDIP, 20-Pin PLCC, SOIC
