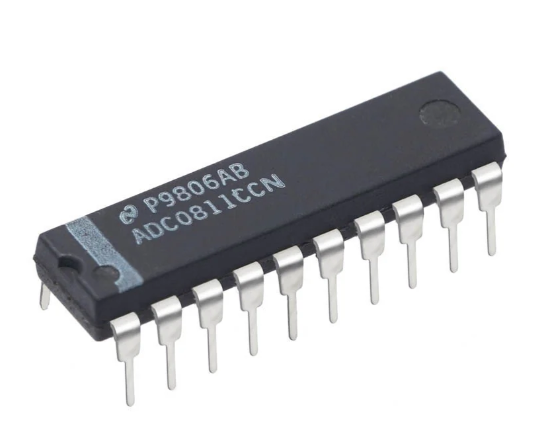

ADC0811 IC A/D converter DIP-20 ADC0811

Product Overview

The ADC0811 is an 8-bit, successive-approximation Analog-to-Digital Converter (ADC) that features an integrated 11-channel analog multiplexer. It is designed to interface easily with microprocessors using a simultaneous serial input/output (I/O) architecture. The chip includes a built-in sample-and-hold function, which is achieved through a capacitive reference ladder, allowing the analog input signal to remain active and vary during the conversion process.

Core Specifications

• Manufacturer: National Semiconductor

• Function: 8-Bit Serial I/O A/D Converter with 11-Channel Multiplexer
