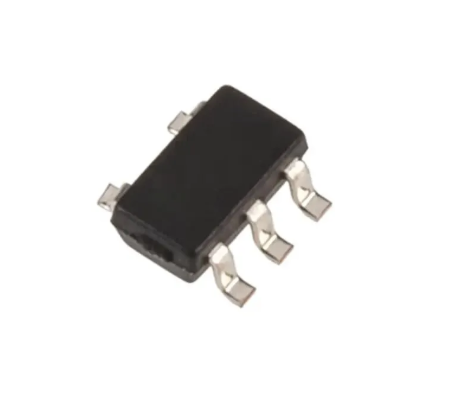

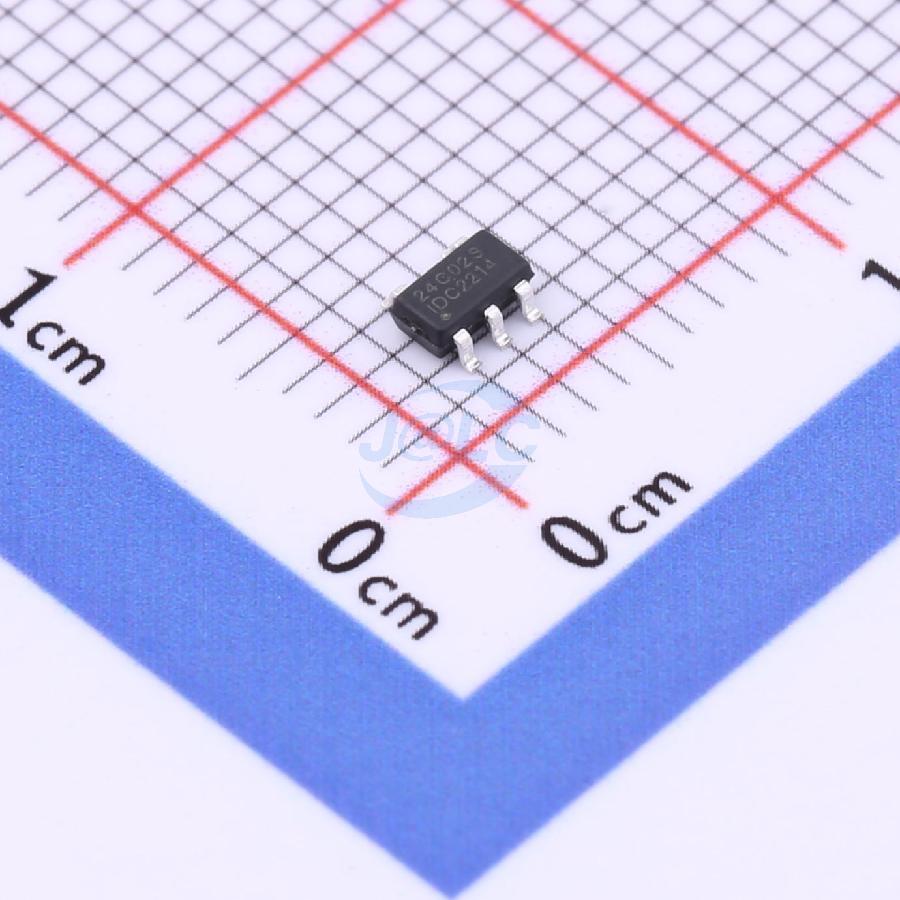

AD24C02 SMD IC EEPROM SOT23-5 2K IDCHI AD24C02

Product Overview:

A serial Electrically Erasable Programmable Read-Only Memory (EEPROM) integrated circuit. The AD24C02 is designed for non-volatile data storage, allowing data to be saved even when the power is turned off. It uses low-power CMOS technology and features a self-timed internal programming cycle.

Core Specifications:

• Manufacturer: Shenzhen Innosilicon Technology (ICHIP)

• Package Type: SOT23-5, SOP-8, or PDIP-8

• Function: Serial EEPROM

• Memory Capacity: 2K bits (256 bytes)

• Interface: Two-wire serial interface

Features:

• Wide Voltage Range: Operates reliably between 1.8V and 5.5V.

• Efficient Memory: Organized as 256 x 8 bits, with a page write capability of 8 bytes per page.

• High Speed: Supports clock frequencies up to 1MHz at 5V operation.

• High Reliability: Rated for 1 million write cycles and 100 years of data retention.

• Noise Suppression: Includes Schmitt trigger inputs to filter out noise on the signal lines.

• Data Protection: Equipped with hardware-based write protection to prevent accidental data loss.

Applications:

• Smart Instrumentation: Used for storing calibration data and user settings in precision measurement tools.

• Consumer Appliances: Maintains configuration settings in household products.

• Industrial Control: Essential for storing operational parameters and system logs in automation equipment.

• Communication Equipment: Stores identity or network configuration data in modular hardware.
