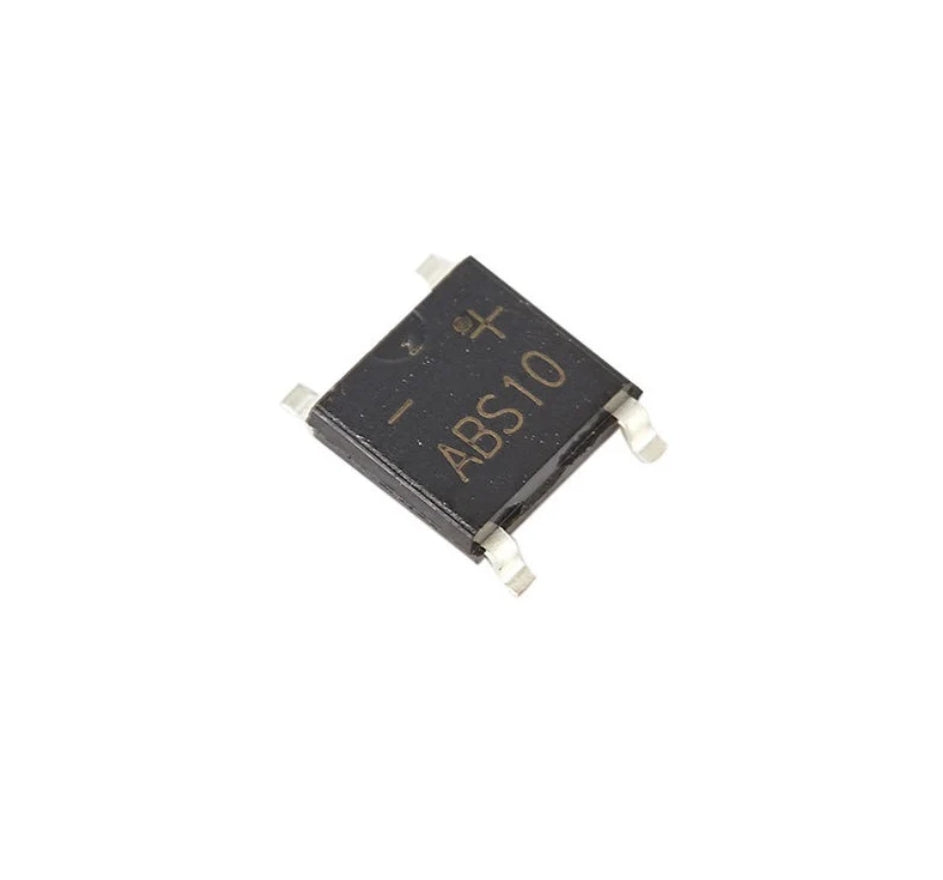

ABS10 Diode SMD 1000V 1A CDIL Single Phase Bridge Rectifier Diode ABS 10 Diode ABS-10

The ABS10 is a 1000V, 1A single-phase glass-passivated bridge rectifier diode manufactured by Continental Device India Limited (CDIL) for power supplies, adapter circuits, and general-purpose AC-to-DC full-wave rectification. Housed in a compact surface-mount ABS molded plastic package, this discrete component integrates four interconnected rectifier junctions to minimize power losses and optimize board space. It operates with a maximum repetitive peak reverse voltage of 1000V and an average forward rectified current of 1A while exhibiting a maximum instantaneous forward voltage drop of 1.1V. Engineered with a high non-repetitive peak forward surge current capability of 35A for robust transient overload protection, this device delivers reliable performance across an operating junction temperature range from minus 50 to plus 155 degrees Celsius.
